Software Design Explanation
2025-10-28

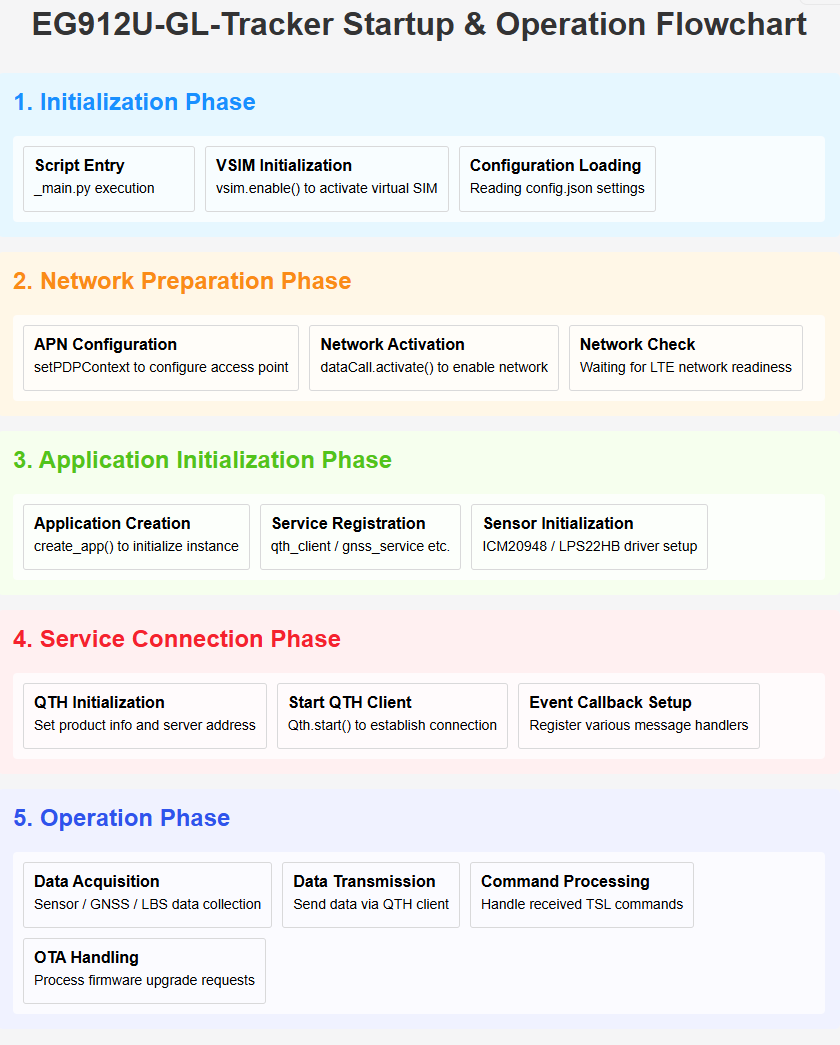

Software Framework
/software.png)
Code Explanation
Wait for the network to be ready
The wait_network_ready class in main.py calculates the maximum number of waiting times by dividing the number of seconds in WAIT_NETWORK_READY_S by the 5-second interval. It returns True if the network is ready, and False if it times out.
def wait_network_ready():
wait_cnt = WAIT_NETWORK_READY_S / 5
is_ready = False
while wait_cnt:
lte = dataCall.getInfo(1, 0)
if lte[2][0] == 1:
is_ready = True
break
utime.sleep(5)
wait_cnt -= 1
return is_ready
Create an application instance
The create_app function creates an application instance. Its main functions include: creating an Application application object, setting the name and version, initializing the application configuration, loading the configuration file from the specified path, initializing various service modules (such as QTH Client, GNSS Service, Battery Service, etc.), and returning the configured application instance.
def create_app(name="SimpliKit", version="1.0.0", config_path="/usr/config.json"):
_app = Application(name, version)
_app.config.init(config_path)
qth_client.init_app(_app)
lbs_service.init_app(_app)
gnss_service.init_app(_app)
sensor_service.init_app(_app)
return _app
LBS Location Service
The init method initializes the service and optionally binds to the application instance app.
The load method starts a thread to run start_update, which is used for periodic updates and sending LBS data.
The read method retrieves base station information via net.getCellInfo() and formats it into a specific string (e.g., $LBS,...).
The start_update method, when an event is triggered, reads LBS data and attempts to send it to the server; if it fails, it retries or waits. After success, it waits for 300 seconds; otherwise, it retries every 2 seconds.
The put_lbs method implements sending LBS data once and exits the loop upon success.
class LbsService(object):
def __init__(self, app=None):
self.__net = net
if app is not None:
self.init_app(app)
def __str__(self):
return '{}'.format(type(self).__name__)
def init_app(self, app):
self.event = app.event
app.register('lbs_service', self)
def load(self):
logger.info('loading {} extension, init lbs will take some seconds'.format(self))
Thread(target=self.start_update).start()
def read(self):
cell_info = net.getCellInfo()
if cell_info != -1 and cell_info[2]:
first_tuple = cell_info[2]
mcc_decimal = first_tuple[0][2] # Retrieve the decimal MCC (e.g., 1120)
#mcc_hex = "{:x}".format(mcc_decimal).upper() # Convert to hexadecimal (e.g., '460')
lbs_data = "$LBS,{},{},{},{},{},0*69;".format(
mcc_decimal,
first_tuple[0][3],
first_tuple[0][5],
first_tuple[0][1],
first_tuple[0][7]
)
return lbs_data
def read(self):
cell_info = net.getCellInfo()
if cell_info != -1 and cell_info[2]:
first_tuple = cell_info[2]
mcc_decimal = first_tuple[0][2] # Retrieve the decimal MCC (e.g., 1120)
#mcc_hex = "{:x}".format(mcc_decimal).upper() # Convert to hexadecimal (e.g., '460')
lbs_data = "$LBS,{},{},{},{},{},0*69;".format(
mcc_decimal,
first_tuple[0][3],
first_tuple[0][5],
first_tuple[0][1],
first_tuple[0][7]
)
return lbs_data
def put_lbs(self):
while True:
lbs_data = self.read()
if lbs_data is None:
utime.sleep(2)
continue
for _ in range(3):
with CurrentApp().qth_client:
if CurrentApp().qth_client.sendLbs(lbs_data):
break
else:
logger.debug("send lbs data to qth server fail, next report will be after 2 seconds")
utime.sleep(2)
continue
logger.debug("send LBS data to qth server success")
break
GNSS positioning service
Manage the initialization and state control of GNSS modules Integrate with the application (init_app) Set the location update interval (update_interval)
class GnssService(object):
def __init__(self, app=None):
self.interval = 300
self.__gnss = quecgnss
if app is not None:
self.init_app(app)
def __str__(self):
return '{}'.format(type(self).__name__)
def init_app(self, app):
self.event = app.event
self.gnss_sleep_event = app.gnss_sleep_event
self.interval = app.config["SLEEP_INTERVAL_SECONDS"]
app.register('gnss_service', self)
def load(self):
logger.info('loading {} extension, init quecgnss will take some seconds'.format(self))
result = self.init()
logger.info('{} init gnss res: {}'.format(self, result))
if result:
Thread(target=self.start_update).start()
def init(self):
if self.__gnss.init() != 0:
logger.warn('{} gnss init FAILED'.format(self))
return False
return True
def status(self):
# 0 int GNSS模块处于关闭状态
# 1 int GNSS模块固件升级中
# 2 int GNSS模块定位中，这种模式下即可开始读取GNSS定位数据，定位数据是否有效需要用户获取到定位数据后，解析对应语句来判断，比如判断GNRMC语句的status是 A 还是 V，A 表示定位有效，V表示定位无效。
return self.__gnss.get_state()
def enable(self, flag=True):
return self.__gnss.gnssEnable(bool(flag)) == 0
def read(self, size=4096):
raw = self.__gnss.read(size)
if raw != -1:
size, data = raw
# KHK
#logger.debug('gnss read raw {} bytes data:\n{}'.format(size, data))
return NmeaDict.load(data)
def check_gnss_signal(self, nmea_dict):
snr_threshold = 15
min_sats = 3
has_3d_fix = False
if "$GNGSA" in nmea_dict:
for line in nmea_dict["$GNGSA"]:
parts = line.split(",")
if len(parts) > 2 and (parts[2] == "3" or parts[2] == "2"):
has_3d_fix = True
break
if not has_3d_fix:
return False
snrs = []
def extract_snrs(lines):
for line in lines:
parts = line.split(",")
i = 4
while i + 3 < len(parts):
snr_str = parts[i + 3]
if snr_str.isdigit():
snrs.append(int(snr_str))
i += 4
if "$GPGSV" in nmea_dict:
extract_snrs(nmea_dict["$GPGSV"])
if "$GBGSV" in nmea_dict:
extract_snrs(nmea_dict["$GBGSV"])
if "$GAGSV" in nmea_dict:
extract_snrs(nmea_dict["$GAGSV"])
# count satelites with SNR > 15
count = 0
for snr in snrs:
if snr > snr_threshold:
count += 1
if count >= min_sats:
return True
return False
def update_interval(self,interval):
...
Sensor Data Acquisition
The SensorService class in SensorService.py is a service class for managing sensor data acquisition and update, primarily responsible for initializing the I2C channel and multiple sensors (SHTC3, LPS22HB, and TCS34725), and continuously reading temperature, humidity, air pressure, and RGB color values from these sensors. It is also responsible for sending this data to the specified QTH client.
class SensorService(object):
def __init__(self, app=None):
# i2c channel 0
self.i2c_channel0 = I2C(I2C.I2C1, I2C.STANDARD_MODE)
# SHTC3
self.shtc3 = Shtc3(self.i2c_channel0, SHTC3_SLAVE_ADDR)
self.shtc3.init()
# LPS22HB
self.lps22hb = Lps22hb(self.i2c_channel0, LPS22HB_SLAVE_ADDRESS)
self.lps22hb.init()
# TCS34725
self.tcs34725 = Tcs34725(self.i2c_channel0, TCS34725_SLAVE_ADDR)
self.tcs34725.init()
if app is not None:
self.init_app(app)
def __str__(self):
return '{}'.format(type(self).__name__)
def init_app(self, app):
app.register('sensor_service', self)
def load(self):
logger.info('loading {} extension, init sensors will take some seconds'.format(self))
Thread(target=self.start_update).start()
def get_temp1_and_humi(self):
return self.shtc3.getTempAndHumi()
def get_press_and_temp2(self):
return self.lps22hb.getTempAndPressure()
def get_rgb888(self):
rgb888 = self.tcs34725.getRGBValue()
logger.debug("R: {}, G: {}, B: {}".format((rgb888 >> 16) & 0xFF, (rgb888 >> 8) & 0xFF, rgb888 & 0xFF))
r = (rgb888 >> 16) & 0xFF
g = (rgb888 >> 8) & 0xFF
b = rgb888 & 0xFF
return r, g, b
def start_update(self):
prev_temp1 = None
prev_humi = None
prev_press = None
prev_temp2 = None
prev_rgb888 = None
while True:
data = {}
try:
temp1, humi = self.shtc3.getTempAndHumi()
logger.debug("temp1: {:0.2f}, humi: {:0.2f}".format(temp1, humi))
if prev_temp1 is None or abs(prev_temp1 - temp1) > 1:
data.update({3: round(temp1, 2)})
prev_temp1 = temp1
if prev_humi is None or abs(prev_humi - humi) > 1:
data.update({4: round(humi, 2)})
prev_humi = humi
except Exception as e:
logger.error("getTempAndHumi error:{}".format(e))
utime.sleep_ms(100)
try:
press, temp2 = self.lps22hb.getTempAndPressure()
logger.debug("press: {:0.2f}, temp2: {:0.2f}".format(press, temp2))
if prev_temp2 is None or abs(prev_temp2 - temp2) > 1:
data.update({5: round(temp2, 2)})
prev_temp2 = temp2
if prev_press is None or abs(prev_press - press) > 1:
data.update({6: round(press, 2)})
prev_press = press
except Exception as e:
logger.error("getTempAndPressure error:{}".format(e))
utime.sleep(1)
QTH Platform Client
The QthClient class is a client class used for communicating with the QTH platform. It is responsible for initializing, starting, and managing the connection to the QTH platform, as well as handling various events and callbacks from the platform.
logger = getLogger(__name__)
class QthClient(object):
def __init__(self, app=None):
self.opt_lock = Lock()
if app:
self.init_app(app)
def __enter__(self):
self.opt_lock.acquire()
return self
def __exit__(self, *args, **kwargs):
self.opt_lock.release()
def init_app(self, app):
app.register("qth_client", self)
Qth.init()
Qth.setProductInfo(app.config["QTH_PRODUCT_KEY"], app.config["QTH_PRODUCT_SECRET"])
Qth.setServer(app.config["QTH_SERVER"])
Qth.setEventCb(
{
"devEvent": self.eventCallback,
"recvTrans": self.recvTransCallback,
"recvTsl": self.recvTslCallback,
"readTsl": self.readTslCallback,
"readTslServer": self.recvTslServerCallback,
"ota": {
"otaPlan":self.otaPlanCallback,
"fotaResult":self.fotaResultCallback
}
}
)
def load(self):
self.start()
def start(self):
Qth.start()
while not self.isStatusOk():
utime.sleep(3)
def stop(self):
Qth.stop()
def sendTsl(self, mode, value):
return Qth.sendTsl(mode, value)
def isStatusOk(self):
return Qth.state()
def sendLbs(self, lbs_data):
return Qth.sendOutsideLocation(lbs_data)
def sendGnss(self, nmea_data):
return Qth.sendOutsideLocation(nmea_data)
def eventCallback(self, event, result):
logger.info("dev event:{} result:{}".format(event, result))
if(2== event and 0 == result):
Qth.otaRequest()
def recvTransCallback(self, value):
ret =Qth.sendTrans(1, value)
logger.info("recvTrans value:{} ret:{}".format(value, ret))
def recvTslCallback(self, value):
logger.info("recvTsl:{}".format(value))
for cmdId, val in value.items():
logger.info("recvTsl {}:{}".format(cmdId, val))
if cmdId == 8:
CurrentApp().gnss_service.update_interval(val)
CurrentApp().lbs_service.update_interval(val)
def readTslCallback(self, ids, pkgId):
logger.info("readTsl ids:{} pkgId:{}".format(ids, pkgId))
value=dict()
temp1, humi =CurrentApp().sensor_service.get_temp1_and_humi()
press, temp2 = CurrentApp().sensor_service.get_press_and_temp2()
r,g,b = CurrentApp().sensor_service.get_rgb888()
for id in ids:
if 3 == id:
value[3]=temp1
elif 4 == id:
value[4]=humi
elif 5 == id:
value[5]=temp2
elif 6 == id:
value[6]=press
elif 7 == id:
value[7]={1:r, 2:g, 3:b}
Qth.ackTsl(1, value, pkgId)
def recvTslServerCallback(self, serverId, value, pkgId):
logger.info("recvTslServer serverId:{} value:{} pkgId:{}".format(serverId, value, pkgId))
Qth.ackTslServer(1, serverId, value, pkgId)
def otaPlanCallback(self, plans):
logger.info("otaPlan:{}".format(plans))
Qth.otaAction(1)
def fotaResultCallback(self, comp_no, result):
logger.info("fotaResult comp_no:{} result:{}".format(comp_no, result))
def sotaInfoCallback(self, comp_no, version, url, md5, crc):
logger.info("sotaInfo comp_no:{} version:{} url:{} md5:{} crc:{}".format(comp_no, version, url, md5, crc))
# 当使用url下载固件完成，且MCU更新完毕后，需要获取MCU最新的版本信息，并通过setMcuVer进行更新
Qth.setMcuVer("MCU1", "V1.0.0", self.sotaInfoCallback, self.sotaResultCallback)
def sotaResultCallback(comp_no, result):
logger.info("sotaResult comp_no:{} result:{}".format(comp_no, result))
