软件设计讲解
2025-10-17

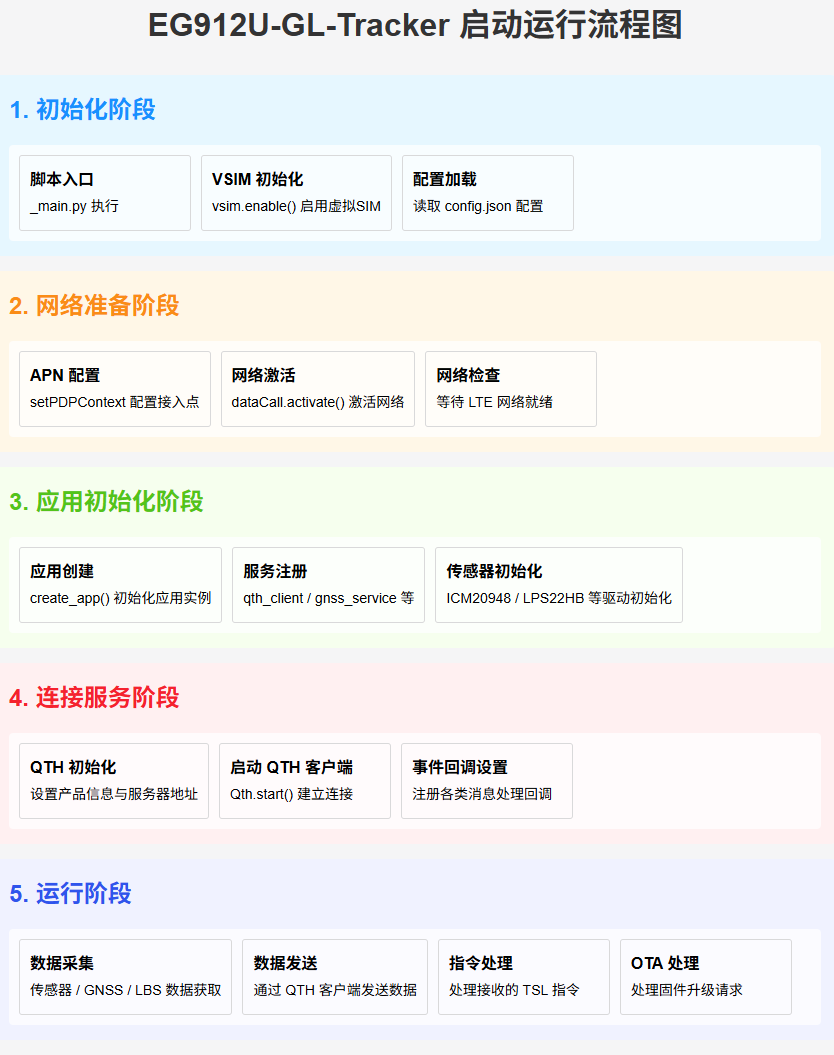

软件框架
软件设计图
/software.png)
代码讲解
等待网络就绪
main.py的wait_network_ready类是计算最大等待次数（WAIT_NETWORK_READY_S）秒除以5秒间隔。如果网络就绪则返回True，超时则返回False。
def wait_network_ready():
wait_cnt = WAIT_NETWORK_READY_S / 5
is_ready = False
while wait_cnt:
lte = dataCall.getInfo(1, 0)
if lte[2][0] == 1:
is_ready = True
break
utime.sleep(5)
wait_cnt -= 1
return is_ready
创建应用实例
create_app创建应用实例的函数。主要功能包括：创建Application应用对象，设置名称和版本初始化应用配置，加载指定路径的配置文件初始化各种服务模块（QTH客户端、GNSS服务、电池服务等），返回配置好的应用实例。
def create_app(name="SimpliKit", version="1.0.0", config_path="/usr/config.json"):
_app = Application(name, version)
_app.config.init(config_path)
qth_client.init_app(_app)
lbs_service.init_app(_app)
gnss_service.init_app(_app)
sensor_service.init_app(_app)
return _app
LBS定位服务
init 方法初始化服务，可选绑定到应用实例 app
load 方法启动一个线程运行 start_update，用于周期性更新和发送LBS数据
read 方法通过 net.getCellInfo() 获取基站信息，格式化为特定字符串（如 $LBS,...）
start_update 方法在事件触发时，读取LBS数据并尝试发送到服务器，失败则重试或等待。成功后等待300秒，否则每2秒重试。
put_lbs 方法实现单次发送LBS数据，成功后退出循环。
class LbsService(object):
def __init__(self, app=None):
self.__net = net
if app is not None:
self.init_app(app)
def __str__(self):
return '{}'.format(type(self).__name__)
def init_app(self, app):
self.event = app.event
app.register('lbs_service', self)
def load(self):
logger.info('loading {} extension, init lbs will take some seconds'.format(self))
Thread(target=self.start_update).start()
def read(self):
cell_info = net.getCellInfo()
if cell_info != -1 and cell_info[2]:
first_tuple = cell_info[2]
mcc_decimal = first_tuple[0][2] # Retrieve the decimal MCC (e.g., 1120)
#mcc_hex = "{:x}".format(mcc_decimal).upper() # Convert to hexadecimal (e.g., '460')
lbs_data = "$LBS,{},{},{},{},{},0*69;".format(
mcc_decimal,
first_tuple[0][3],
first_tuple[0][5],
first_tuple[0][1],
first_tuple[0][7]
)
return lbs_data
def read(self):
cell_info = net.getCellInfo()
if cell_info != -1 and cell_info[2]:
first_tuple = cell_info[2]
mcc_decimal = first_tuple[0][2] # Retrieve the decimal MCC (e.g., 1120)
#mcc_hex = "{:x}".format(mcc_decimal).upper() # Convert to hexadecimal (e.g., '460')
lbs_data = "$LBS,{},{},{},{},{},0*69;".format(
mcc_decimal,
first_tuple[0][3],
first_tuple[0][5],
first_tuple[0][1],
first_tuple[0][7]
)
return lbs_data
def put_lbs(self):
while True:
lbs_data = self.read()
if lbs_data is None:
utime.sleep(2)
continue
for _ in range(3):
with CurrentApp().qth_client:
if CurrentApp().qth_client.sendLbs(lbs_data):
break
else:
logger.debug("send lbs data to qth server fail, next report will be after 2 seconds")
utime.sleep(2)
continue
logger.debug("send LBS data to qth server success")
break
GNSS定位服务
管理GNSS模块的初始化和状态控制
与应用程序集成 (init_app)
设置定位更新间隔 (update_interval)
class GnssService(object):
def __init__(self, app=None):
self.interval = 300
self.__gnss = quecgnss
if app is not None:
self.init_app(app)
def __str__(self):
return '{}'.format(type(self).__name__)
def init_app(self, app):
self.event = app.event
self.gnss_sleep_event = app.gnss_sleep_event
self.interval = app.config["SLEEP_INTERVAL_SECONDS"]
app.register('gnss_service', self)
def load(self):
logger.info('loading {} extension, init quecgnss will take some seconds'.format(self))
result = self.init()
logger.info('{} init gnss res: {}'.format(self, result))
if result:
Thread(target=self.start_update).start()
def init(self):
if self.__gnss.init() != 0:
logger.warn('{} gnss init FAILED'.format(self))
return False
return True
def status(self):
# 0 int GNSS模块处于关闭状态
# 1 int GNSS模块固件升级中
# 2 int GNSS模块定位中，这种模式下即可开始读取GNSS定位数据，定位数据是否有效需要用户获取到定位数据后，解析对应语句来判断，比如判断GNRMC语句的status是 A 还是 V，A 表示定位有效，V表示定位无效。
return self.__gnss.get_state()
def enable(self, flag=True):
return self.__gnss.gnssEnable(bool(flag)) == 0
def read(self, size=4096):
raw = self.__gnss.read(size)
if raw != -1:
size, data = raw
# KHK
#logger.debug('gnss read raw {} bytes data:\n{}'.format(size, data))
return NmeaDict.load(data)
def check_gnss_signal(self, nmea_dict):
snr_threshold = 15
min_sats = 3
has_3d_fix = False
if "$GNGSA" in nmea_dict:
for line in nmea_dict["$GNGSA"]:
parts = line.split(",")
if len(parts) > 2 and (parts[2] == "3" or parts[2] == "2"):
has_3d_fix = True
break
if not has_3d_fix:
return False
snrs = []
def extract_snrs(lines):
for line in lines:
parts = line.split(",")
i = 4
while i + 3 < len(parts):
snr_str = parts[i + 3]
if snr_str.isdigit():
snrs.append(int(snr_str))
i += 4
if "$GPGSV" in nmea_dict:
extract_snrs(nmea_dict["$GPGSV"])
if "$GBGSV" in nmea_dict:
extract_snrs(nmea_dict["$GBGSV"])
if "$GAGSV" in nmea_dict:
extract_snrs(nmea_dict["$GAGSV"])
# count satelites with SNR > 15
count = 0
for snr in snrs:
if snr > snr_threshold:
count += 1
if count >= min_sats:
return True
return False
def update_interval(self,interval):
...
传感器数据采集
SensorService.py的SensorService 类是一个用于管理传感器数据采集和更新的服务类，主要负责初始化 I2C 通道和多个传感器（SHTC3、LPS22HB 和 TCS34725），并持续从这些传感器中读取温度、湿度、气压和 RGB 颜色值。它还负责将这些数据发送到指定的QTH 客户端。
class SensorService(object):
def __init__(self, app=None):
# i2c channel 0
self.i2c_channel0 = I2C(I2C.I2C1, I2C.STANDARD_MODE)
# SHTC3
self.shtc3 = Shtc3(self.i2c_channel0, SHTC3_SLAVE_ADDR)
self.shtc3.init()
# LPS22HB
self.lps22hb = Lps22hb(self.i2c_channel0, LPS22HB_SLAVE_ADDRESS)
self.lps22hb.init()
# TCS34725
self.tcs34725 = Tcs34725(self.i2c_channel0, TCS34725_SLAVE_ADDR)
self.tcs34725.init()
if app is not None:
self.init_app(app)
def __str__(self):
return '{}'.format(type(self).__name__)
def init_app(self, app):
app.register('sensor_service', self)
def load(self):
logger.info('loading {} extension, init sensors will take some seconds'.format(self))
Thread(target=self.start_update).start()
def get_temp1_and_humi(self):
return self.shtc3.getTempAndHumi()
def get_press_and_temp2(self):
return self.lps22hb.getTempAndPressure()
def get_rgb888(self):
rgb888 = self.tcs34725.getRGBValue()
logger.debug("R: {}, G: {}, B: {}".format((rgb888 >> 16) & 0xFF, (rgb888 >> 8) & 0xFF, rgb888 & 0xFF))
r = (rgb888 >> 16) & 0xFF
g = (rgb888 >> 8) & 0xFF
b = rgb888 & 0xFF
return r, g, b
def start_update(self):
prev_temp1 = None
prev_humi = None
prev_press = None
prev_temp2 = None
prev_rgb888 = None
while True:
data = {}
try:
temp1, humi = self.shtc3.getTempAndHumi()
logger.debug("temp1: {:0.2f}, humi: {:0.2f}".format(temp1, humi))
if prev_temp1 is None or abs(prev_temp1 - temp1) > 1:
data.update({3: round(temp1, 2)})
prev_temp1 = temp1
if prev_humi is None or abs(prev_humi - humi) > 1:
data.update({4: round(humi, 2)})
prev_humi = humi
except Exception as e:
logger.error("getTempAndHumi error:{}".format(e))
utime.sleep_ms(100)
try:
press, temp2 = self.lps22hb.getTempAndPressure()
logger.debug("press: {:0.2f}, temp2: {:0.2f}".format(press, temp2))
if prev_temp2 is None or abs(prev_temp2 - temp2) > 1:
data.update({5: round(temp2, 2)})
prev_temp2 = temp2
if prev_press is None or abs(prev_press - press) > 1:
data.update({6: round(press, 2)})
prev_press = press
except Exception as e:
logger.error("getTempAndPressure error:{}".format(e))
utime.sleep(1)
QTH平台客户端
QthClient 类是一个用于与 QTH（Quantum Technology Hub）平台进行通信的客户端类。它负责初始化、启动和管理与 QTH 平台的连接，并处理来自平台的各种事件和回调。
logger = getLogger(__name__)
class QthClient(object):
def __init__(self, app=None):
self.opt_lock = Lock()
if app:
self.init_app(app)
def __enter__(self):
self.opt_lock.acquire()
return self
def __exit__(self, *args, **kwargs):
self.opt_lock.release()
def init_app(self, app):
app.register("qth_client", self)
Qth.init()
Qth.setProductInfo(app.config["QTH_PRODUCT_KEY"], app.config["QTH_PRODUCT_SECRET"])
Qth.setServer(app.config["QTH_SERVER"])
Qth.setEventCb(
{
"devEvent": self.eventCallback,
"recvTrans": self.recvTransCallback,
"recvTsl": self.recvTslCallback,
"readTsl": self.readTslCallback,
"readTslServer": self.recvTslServerCallback,
"ota": {
"otaPlan":self.otaPlanCallback,
"fotaResult":self.fotaResultCallback
}
}
)
def load(self):
self.start()
def start(self):
Qth.start()
while not self.isStatusOk():
utime.sleep(3)
def stop(self):
Qth.stop()
def sendTsl(self, mode, value):
return Qth.sendTsl(mode, value)
def isStatusOk(self):
return Qth.state()
def sendLbs(self, lbs_data):
return Qth.sendOutsideLocation(lbs_data)
def sendGnss(self, nmea_data):
return Qth.sendOutsideLocation(nmea_data)
def eventCallback(self, event, result):
logger.info("dev event:{} result:{}".format(event, result))
if(2== event and 0 == result):
Qth.otaRequest()
def recvTransCallback(self, value):
ret =Qth.sendTrans(1, value)
logger.info("recvTrans value:{} ret:{}".format(value, ret))
def recvTslCallback(self, value):
logger.info("recvTsl:{}".format(value))
for cmdId, val in value.items():
logger.info("recvTsl {}:{}".format(cmdId, val))
if cmdId == 8:
CurrentApp().gnss_service.update_interval(val)
CurrentApp().lbs_service.update_interval(val)
def readTslCallback(self, ids, pkgId):
logger.info("readTsl ids:{} pkgId:{}".format(ids, pkgId))
value=dict()
temp1, humi =CurrentApp().sensor_service.get_temp1_and_humi()
press, temp2 = CurrentApp().sensor_service.get_press_and_temp2()
r,g,b = CurrentApp().sensor_service.get_rgb888()
for id in ids:
if 3 == id:
value[3]=temp1
elif 4 == id:
value[4]=humi
elif 5 == id:
value[5]=temp2
elif 6 == id:
value[6]=press
elif 7 == id:
value[7]={1:r, 2:g, 3:b}
Qth.ackTsl(1, value, pkgId)
def recvTslServerCallback(self, serverId, value, pkgId):
logger.info("recvTslServer serverId:{} value:{} pkgId:{}".format(serverId, value, pkgId))
Qth.ackTslServer(1, serverId, value, pkgId)
def otaPlanCallback(self, plans):
logger.info("otaPlan:{}".format(plans))
Qth.otaAction(1)
def fotaResultCallback(self, comp_no, result):
logger.info("fotaResult comp_no:{} result:{}".format(comp_no, result))
def sotaInfoCallback(self, comp_no, version, url, md5, crc):
logger.info("sotaInfo comp_no:{} version:{} url:{} md5:{} crc:{}".format(comp_no, version, url, md5, crc))
# 当使用url下载固件完成，且MCU更新完毕后，需要获取MCU最新的版本信息，并通过setMcuVer进行更新
Qth.setMcuVer("MCU1", "V1.0.0", self.sotaInfoCallback, self.sotaResultCallback)
def sotaResultCallback(comp_no, result):
logger.info("sotaResult comp_no:{} result:{}".format(comp_no, result))
