Software Design
2025-11-06
Introduction
The Smart Tracker by Acceleronix lets you connect effortlessly to the Acceleronix Asset Management SaaS, enabling quick cloud service demos with zero setup hassle. This guide will walk you through using the Smart Tracker to explore platform features seamlessly.
Software framework

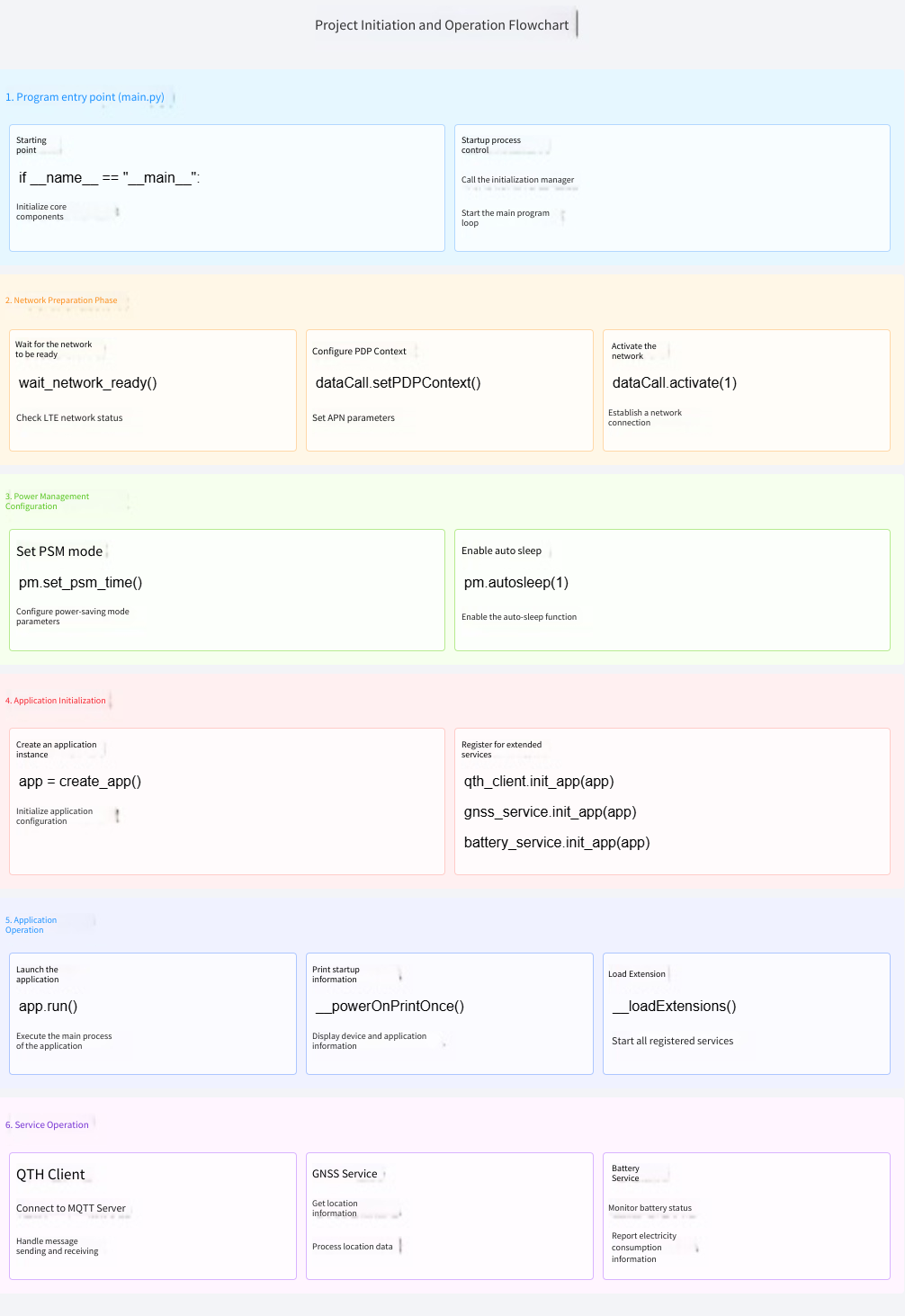

Software Design Diagram
/20251105-181314.png)
Code Explanation
Wait for the network to be ready
The wait_network_ready class in main.py calculates the maximum number of waiting times (WAIT_NETWORK_READY_S seconds divided by a 5-second interval). It returns True if the network is ready, and False if it times out.
def wait_network_ready():
wait_cnt = WAIT_NETWORK_READY_S / 5
is_ready = False
while wait_cnt:
lte = dataCall.getInfo(1, 0)
if lte[2][0] == 1:
is_ready = True
break
utime.sleep(5)
wait_cnt -= 1
return is_ready
Create an application instance
The create_app function creates an application instance. Its main functions include: creating an Application object, setting the name and version, initializing application configuration, loading configuration files from specified paths, initializing various service modules (such as QTH Client, GNSS Service, Battery Service, etc.), and returning the configured application instance.
def create_app(name="SimpliKit", version="1.0.0", config_path="/usr/config.json"):
_app = Application(name, version)
_app.config.init(config_path)
qth_client.init_app(_app)
#lbs_service.init_app(_app)
gnss_service.init_app(_app)
battery_service.init_app(_app)
#sensor_service.init_app(_app)
return _app
GNSS
This is a Python service module used to process GNSS (Global Navigation Satellite System) positioning data, mainly used for positioning and tracking of IoT devices.
NMEA Data Parsing Class - NmeaDict
NMEA is the standard data format used by GPS devices:
• The load() method: Parses raw NMEA data and performs CRC checks.
• The checksum() method: Verifies the integrity of NMEA sentences.
class NmeaDict(dict):
@classmethod
def load(cls, raw):
items = {}
for line in raw.split('\r\n'):
try:
tail_index = line.rfind('*')
if tail_index == -1:
continue
head_index = line.rfind('$', 0, tail_index)
if head_index == -1:
continue
crc = int(line[tail_index + 1:tail_index + 3], 16)
if cls.checksum(line[head_index + 1:tail_index]) != crc:
raise ValueError('CRC check failed')
cmdlist = line[head_index:tail_index].split(',')
# print(line[head_index:])
if cmdlist[0] not in items:
items[cmdlist[0]] = []
items[cmdlist[0]].append(line)
except Exception as e:
# logger.debug('parse nmea line error: {}; pass it: {}'.format(e, line))
continue
return cls(items)
@staticmethod
def checksum(data):
crc = ord(data[0])
for one in (ord(_) for _ in data[1:]):
crc ^= one
return crc
Core Service Class - GnssService
Initialization and Configuration
• Manage the initialization and state control of GNSS modules
• Integrate with applications (init_app)
• Set the positioning update interval (update_interval)
class GnssService(object):
def __init__(self, app=None):
self.interval = 300
self.__gnss = quecgnss
if app is not None:
self.init_app(app)
def __str__(self):
return '{}'.format(type(self).__name__)
def init_app(self, app):
self.event = app.event
self.gnss_sleep_event = app.gnss_sleep_event
self.interval = app.config["SLEEP_INTERVAL_SECONDS"]
app.register('gnss_service', self)
def load(self):
logger.info('loading {} extension, init quecgnss will take some seconds'.format(self))
result = self.init()
logger.info('{} init gnss res: {}'.format(self, result))
if result:
Thread(target=self.start_update).start()
def init(self):
if self.__gnss.init() != 0:
logger.warn('{} gnss init FAILED'.format(self))
return False
return True
def status(self):
# 0 int GNSS模块处于关闭状态
# 1 int GNSS模块固件升级中
# 2 int GNSS模块定位中，这种模式下即可开始读取GNSS定位数据，定位数据是否有效需要用户获取到定位数据后，解析对应语句来判断，比如判断GNRMC语句的status是 A 还是 V，A 表示定位有效，V表示定位无效。
return self.__gnss.get_state()
def enable(self, flag=True):
return self.__gnss.gnssEnable(bool(flag)) == 0
def read(self, size=4096):
raw = self.__gnss.read(size)
if raw != -1:
size, data = raw
# KHK
#logger.debug('gnss read raw {} bytes data:\n{}'.format(size, data))
return NmeaDict.load(data)
def check_gnss_signal(self, nmea_dict):
snr_threshold = 15
min_sats = 3
has_3d_fix = False
if "$GNGSA" in nmea_dict:
for line in nmea_dict["$GNGSA"]:
parts = line.split(",")
if len(parts) > 2 and (parts[2] == "3" or parts[2] == "2"):
has_3d_fix = True
break
if not has_3d_fix:
return False
snrs = []
def extract_snrs(lines):
for line in lines:
parts = line.split(",")
i = 4
while i + 3 < len(parts):
snr_str = parts[i + 3]
if snr_str.isdigit():
snrs.append(int(snr_str))
i += 4
if "$GPGSV" in nmea_dict:
extract_snrs(nmea_dict["$GPGSV"])
if "$GBGSV" in nmea_dict:
extract_snrs(nmea_dict["$GBGSV"])
if "$GAGSV" in nmea_dict:
extract_snrs(nmea_dict["$GAGSV"])
# count satelites with SNR > 15
count = 0
for snr in snrs:
if snr > snr_threshold:
count += 1
if count >= min_sats:
return True
return False
def update_interval(self,interval):
self.interval = interval
QTH Platform Client
The QthClient class is a client class used for communicating with the QTH (Quantum Technology Hub) platform. It is responsible for initializing, starting, and managing the connection to the QTH platform, as well as handling various events and callbacks from the platform.
logger = getLogger(__name__)
class QthClient(object):
def __init__(self, app=None):
self.opt_lock = Lock()
if app:
self.init_app(app)
def __enter__(self):
self.opt_lock.acquire()
return self
def __exit__(self, *args, **kwargs):
self.opt_lock.release()
def init_app(self, app):
app.register("qth_client", self)
Qth.init()
Qth.setProductInfo(app.config["QTH_PRODUCT_KEY"], app.config["QTH_PRODUCT_SECRET"])
Qth.setServer(app.config["QTH_SERVER"])
Qth.setEventCb(
{
"devEvent": self.eventCallback,
"recvTrans": self.recvTransCallback,
"recvTsl": self.recvTslCallback,
"readTsl": self.readTslCallback,
"readTslServer": self.recvTslServerCallback,
"ota": {
"otaPlan":self.otaPlanCallback,
"fotaResult":self.fotaResultCallback
}
}
)
def load(self):
self.start()
def start(self):
Qth.start()
while not self.isStatusOk():
utime.sleep(3)
def stop(self):
Qth.stop()
def sendTsl(self, mode, value):
return Qth.sendTsl(mode, value)
def isStatusOk(self):
return Qth.state()
def sendLbs(self, lbs_data):
return Qth.sendOutsideLocation(lbs_data)
def sendGnss(self, nmea_data):
return Qth.sendOutsideLocation(nmea_data)
def eventCallback(self, event, result):
logger.info("dev event:{} result:{}".format(event, result))
if(2== event and 0 == result):
Qth.otaRequest()
def recvTransCallback(self, value):
ret =Qth.sendTrans(1, value)
logger.info("recvTrans value:{} ret:{}".format(value, ret))
def recvTslCallback(self, value):
logger.info("recvTsl:{}".format(value))
for cmdId, val in value.items():
logger.info("recvTsl {}:{}".format(cmdId, val))
if cmdId == 8:
CurrentApp().gnss_service.update_interval(val)
CurrentApp().lbs_service.update_interval(val)
def readTslCallback(self, ids, pkgId):
logger.info("readTsl ids:{} pkgId:{}".format(ids, pkgId))
value=dict()
temp1, humi =CurrentApp().sensor_service.get_temp1_and_humi()
press, temp2 = CurrentApp().sensor_service.get_press_and_temp2()
r,g,b = CurrentApp().sensor_service.get_rgb888()
for id in ids:
if 3 == id:
value[3]=temp1
elif 4 == id:
value[4]=humi
elif 5 == id:
value[5]=temp2
elif 6 == id:
value[6]=press
elif 7 == id:
value[7]={1:r, 2:g, 3:b}
Qth.ackTsl(1, value, pkgId)
def recvTslServerCallback(self, serverId, value, pkgId):
logger.info("recvTslServer serverId:{} value:{} pkgId:{}".format(serverId, value, pkgId))
Qth.ackTslServer(1, serverId, value, pkgId)
def otaPlanCallback(self, plans):
logger.info("otaPlan:{}".format(plans))
Qth.otaAction(1)
def fotaResultCallback(self, comp_no, result):
logger.info("fotaResult comp_no:{} result:{}".format(comp_no, result))
def sotaInfoCallback(self, comp_no, version, url, md5, crc):
logger.info("sotaInfo comp_no:{} version:{} url:{} md5:{} crc:{}".format(comp_no, version, url, md5, crc))
# 当使用url下载固件完成，且MCU更新完毕后，需要获取MCU最新的版本信息，并通过setMcuVer进行更新
Qth.setMcuVer("MCU1", "V1.0.0", self.sotaInfoCallback, self.sotaResultCallback)
def sotaResultCallback(comp_no, result):
logger.info("sotaResult comp_no:{} result:{}".format(comp_no, result))
Battery Service
battery_service.init_app initializes the battery service module.
logger = getLogger(__name__)
BATTERY_OCV_TABLE = {
"nix_coy_mnzo2": {
55: {
4152: 100, 4083: 95, 4023: 90, 3967: 85, 3915: 80, 3864: 75, 3816: 70, 3773: 65, 3737: 60, 3685: 55,
3656: 50, 3638: 45, 3625: 40, 3612: 35, 3596: 30, 3564: 25, 3534: 20, 3492: 15, 3457: 10, 3410: 5, 3380: 0,
},
20: {
4143: 100, 4079: 95, 4023: 90, 3972: 85, 3923: 80, 3876: 75, 3831: 70, 3790: 65, 3754: 60, 3720: 55,
3680: 50, 3652: 45, 3634: 40, 3621: 35, 3608: 30, 3595: 25, 3579: 20, 3548: 15, 3511: 10, 3468: 5, 3430: 0,
},
0: {
4147: 100, 4089: 95, 4038: 90, 3990: 85, 3944: 80, 3899: 75, 3853: 70, 3811: 65, 3774: 60, 3741: 55,
3708: 50, 3675: 45, 3651: 40, 3633: 35, 3620: 30, 3608: 25, 3597: 20, 3585: 15, 3571: 10, 3550: 5, 3500: 0,
},
},
}
class BatteryService(object):
def __init__(self, app=None):
self.interval = 30
self.__net = net
if app is not None:
self.init_app(app, battery_ocv="nix_coy_mnzo2")
def __str__(self):
return '{}'.format(type(self).__name__)
def init_app(self, app, battery_ocv="nix_coy_mnzo2"):
self.gnss_sleep_event = app.gnss_sleep_event
self.interval = app.config["SLEEP_INTERVAL_SECONDS"]
self.__energy = 100
self.__temp = 30
self.__vbatt_count = 100
if not BATTERY_OCV_TABLE.get(battery_ocv):
raise TypeError("Battery OCV %s is not support." % battery_ocv)
self.__battery_ocv = battery_ocv
app.register('battery_service', self)
def load(self):
logger.info('loading {} extension, init battery will take some seconds'.format(self))
Thread(target=self.start_update).start()
def __get_soc_from_dict(self, key, volt_arg):
"""Get battery energy from map"""
if BATTERY_OCV_TABLE[self.__battery_ocv].get(key):
volts = sorted(BATTERY_OCV_TABLE[self.__battery_ocv][key].keys(), reverse=True)
pre_volt = 0
volt_not_under = 0 # Determine whether the voltage is lower than the minimum voltage value of soc.
for volt in volts:
if volt_arg > volt:
volt_not_under = 1
soc1 = BATTERY_OCV_TABLE[self.__battery_ocv][key].get(volt, 0)
soc2 = BATTERY_OCV_TABLE[self.__battery_ocv][key].get(pre_volt, 0)
break
else:
pre_volt = volt
if pre_volt == 0: # Input Voltarg > Highest Voltarg
return soc1
elif volt_not_under == 0:
return 0
else:
return soc2 - (soc2 - soc1) * (pre_volt - volt_arg) // (pre_volt - volt)
def __get_soc(self, temp, volt_arg):
"""Get battery energy by temperature and voltage"""
if temp > 30:
return self.__get_soc_from_dict(55, volt_arg)
elif temp < 10:
return self.__get_soc_from_dict(0, volt_arg)
else:
return self.__get_soc_from_dict(20, volt_arg)
def __get_power_vbatt(self):
"""Get vbatt from power"""
return int(sum([Power.getVbatt() for i in range(self.__vbatt_count)]) / self.__vbatt_count)
def set_temp(self, temp):
"""Set now temperature."""
if isinstance(temp, int) or isinstance(temp, float):
self.__temp = temp
return True
return False
def start_update(self):
while True:
if quecgnss.getPriority():
self.__energy = self.__get_soc(self.__temp, self.__get_power_vbatt())
data = {4: self.__energy}
if data:
with CurrentApp().qth_client:
for _ in range(3):
if CurrentApp().qth_client.sendTsl(1, data):
logger.debug("send battery data to qth server success")
break
#self.gnss_sleep_event.set() # Notify GNSS service to wake up
utime.sleep(self.interval)
else:
utime.sleep(0.1)
