Fall Alarm Device

2026-03-31

This application is a smart solution based on Quectel Pi H1 intelligent main board, using USB camera for real-time human pose recognition, employing YOLOv8-Pose and multi-person fall classifier to automatically detect whether a user has fallen.

This project collects real-time footage via a camera. When a fall event is detected, it triggers a local alarm and sends a notification to a mobile phone. Users can view fall-related images through an APK on their mobile devices. It can serve as a reference example for safety monitoring and fall warning systems for the elderly or patients.

Development Resources Summary

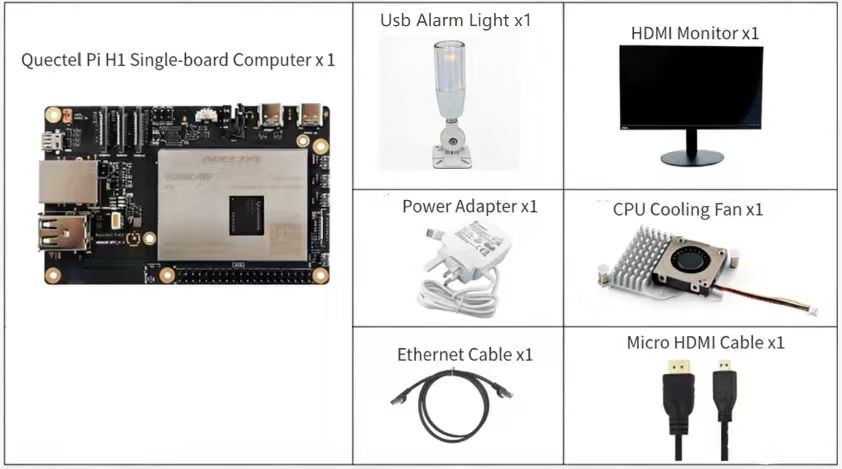

Development Accessories List

Accessory Name Quantity Specifications
Quectel Pi H1 Intelligent Main Board 1 board Quectel Pi H1 Smart Ecosystem Development Board
USB Camera 1 unit Recommended resolution: 1280×720 or higher; Output format: MJPG/YUYV
USB-C Power Cable Charger 1 unit 27W USB Type-C Interface Charger 1.2m Cable Length Standard Power PD Power Supply Suitable for Raspberry Pi 5
USB-C DP Display Cable / HDMI Cable 1 unit Specifications: DP 1.4; Cable length: 1m; Interface: USB-C (male) - USB-C (male)
Specifications: HDMI 2.0; Cable length: 1m; Interface: HDMI-A (male) -HDMI-D (male)
CPU Cooling Fan (Optional) 1 unit Raspberry Pi 5 Official Active Cooler with Heatsink and Thermal Pad
Display 1 unit 24-inch HDMI monitor
USB Programmable Alarm Light (Optional) 1 unit LED alarm light controlled via serial port (/dev/ttyUSB0)

Accessories Reference

Quectel Kit

Quick Start

Development Preparation

Quectel Pi H1 intelligent main board comes with Debian 13 system image by default, so there's no need to flash the image again. Just follow the steps below.

Hardware Connection

Display Connection

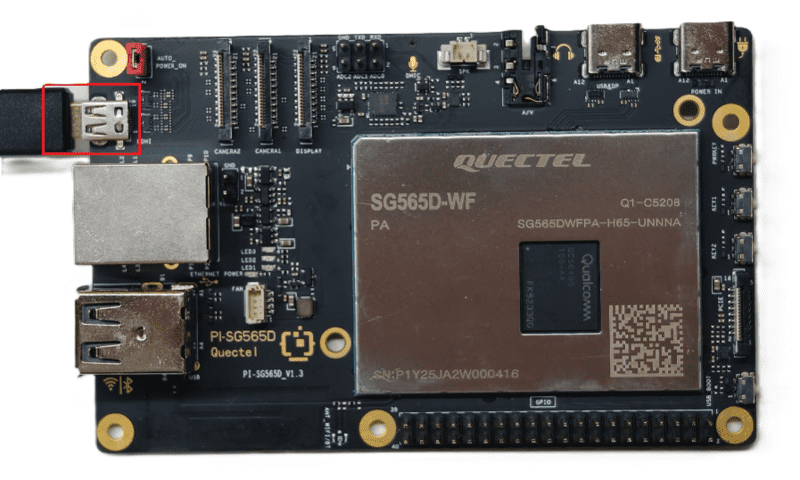

Connect one end of the HDMI cable to the HDMI port on the intelligent main board, and the other end to the HDMI port on the monitor.

Input Device Connection

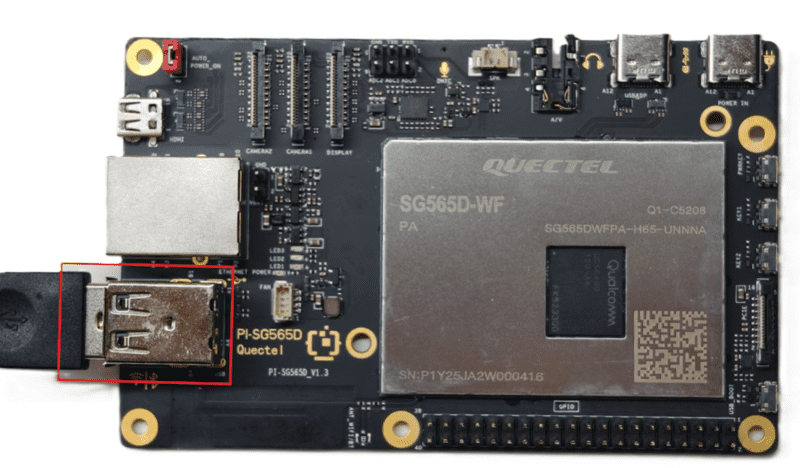

Connect USB keyboard and mouse to the two USB-A ports on the intelligent main board. For wireless input devices, simply plug the receiver into the USB port.

Network Cable Connection

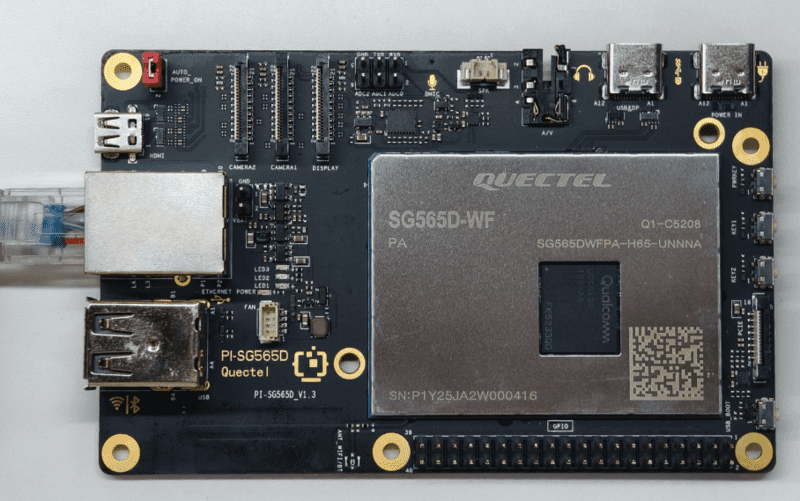

Connect one end of the network cable to the Gigabit Ethernet port on the intelligent main board, and the other end to a router port (ensure the router has internet access).

USB Alarm Light Connection (Optional)

Connect the alarm light to an available USB port on the intelligent main board using a USB cable (refer to your alarm device documentation)

Power Connection

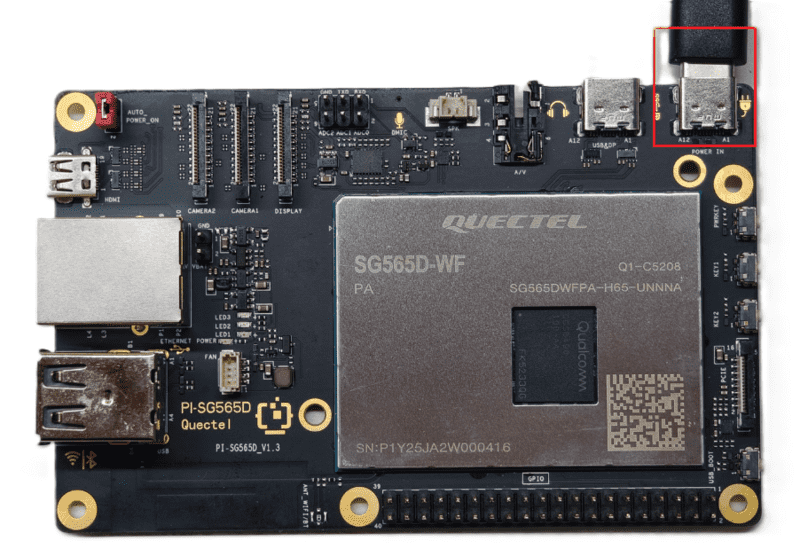

Connect the USB-A end of the power cable to the power adapter, and the USB-C end to the power port on the intelligent main board (usually labeled POWER IN).

Project Implementation

Prerequisites Installation

After confirming network connection, open the terminal and enter the command:

sudo apt update && sudo apt install -y python3-pip libatlas-base-dev libjasper-dev

The above command will update the software sources and install some libraries required for the project, including:

  • libatlas-base-dev and libjasper-dev: Dependencies for scientific computing libraries;
  • python3-pip: Python package manager for installing project dependencies.

Get the Code

Download Code

Extract the code to the device

Install Python Dependencies

pip install -r requirements.txt

Dependency package descriptions:

  • PySide6: Python bindings for Qt6, used for building graphical user interfaces;
  • opencv-python: OpenCV image processing library, used for camera capture and image processing;
  • ultralytics: YOLOv8 object detection framework, used for human keypoint detection;
  • numpy: Numerical computing library, used for matrix operations and feature extraction;
  • scikit-learn: Machine learning library, used for providing random forest classifier;
  • joblib: Serialization library, used for loading pre-trained models.

Prepare Model Files

The fall detection application requires the following model files to be pre-loaded, please place them in the model/ directory:

  1. yolov8n-pose.pt - YOLOv8-Nano Pose model, used for detecting 17 human keypoints
  2. fall_multi_person_model.pkl - Random forest classifier, used for determining falls
  3. feature_scaler_multi.pkl - Feature scaler, used for standardizing input features

These model files can be obtained from:

  • yolov8n-pose.pt: Download from Ultralytics official GitHub or auto-download via code
  • fall_multi_person_model.pkl and feature_scaler_multi.pkl are placed in the model directory

Run the Application

After preparing the models, run the main program:

cd src
python3 main.py

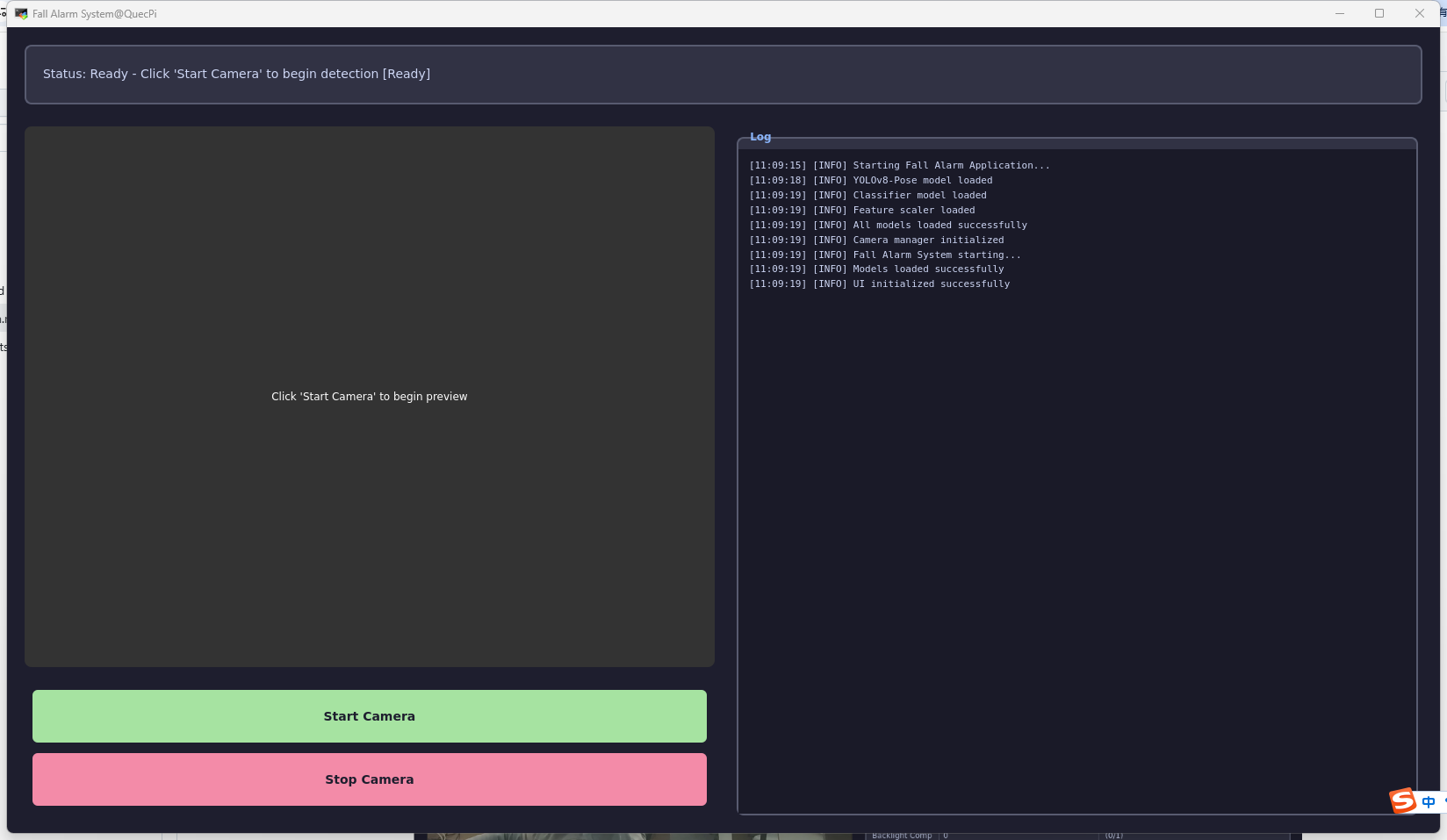

After the program starts, it will display a graphical interface with the following features:

Interface Description
Interface Area Function Description
Camera Preview Area Real-time display of camera captured footage, with detected humans and fall status annotated
Log Output Area Display real-time logs and detection information during application runtime

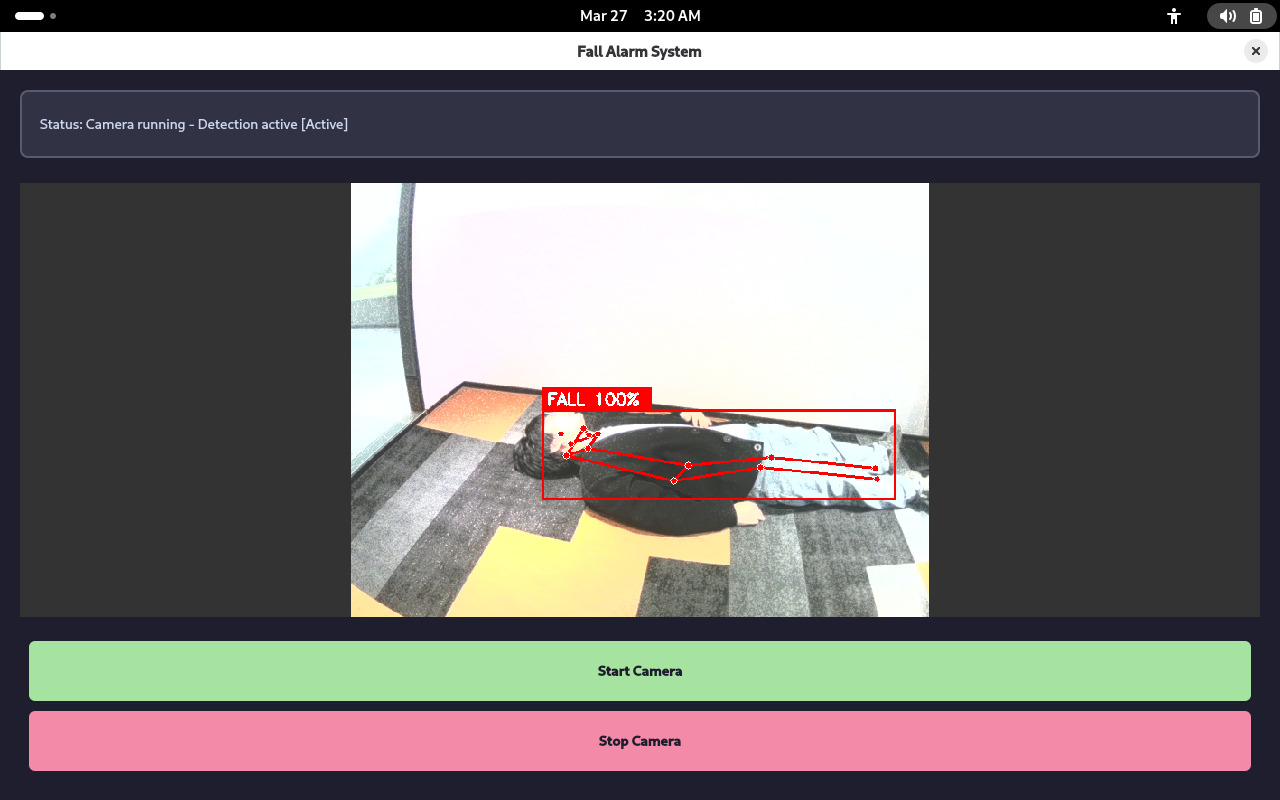

Fall Alarm Alert Display fall detection results at the top, automatically trigger alarm light and save alarm images
Camera Selection Supports multiple USB cameras, can automatically detect and select available cameras
Log Display Area

The right side area can output log information during application runtime, including:

  • Model Loading Logs: Shows whether YOLOv8 model and classifier loaded successfully
  • Detection Logs: Shows number of detected humans and fall status
  • Alarm Logs: Shows fall alarms and image upload status
Real-time Detection Parameters

The program uses the following parameters for fall detection (can be adjusted according to actual needs):

Parameter Description Default Value
MIN_CONFIDENCE Keypoint confidence threshold 0.4
MIN_KEYPOINTS Minimum number of valid keypoints 10
FALL_BODY_ANGLE_THRESHOLD Body tilt angle threshold 55°
FALL_HEIGHT_RATIO_THRESHOLD Body height-to-width ratio threshold 1.2
FALL_MIN_CONFIDENCE Classifier confidence threshold 0.75
FALL_CONFIRM_FRAMES Fall confirmation frame count 3
DETECT_INTERVAL Detection interval (seconds) 0.15

Fall Detection Principle

Keypoint Detection

The application uses YOLOv8-Pose model to detect 17 human keypoints:

0: Nose       1: Left Eye       2: Right Eye       3: Left Ear       4: Right Ear
5: Left Shoulder       6: Right Shoulder       7: Left Elbow       8: Right Elbow       9: Left Wrist
10: Right Wrist    11: Left Hip       12: Right Hip      13: Left Knee      14: Right Knee
15: Left Ankle    16: Right Ankle
Feature Extraction

The following features are extracted from keypoints for classification:

  1. Keypoint Coordinates: (x, y) coordinates and confidence of 17 keypoints, 51 dimensions total
  2. Body Angles: Calculate angle features between 8 keypoints, 8 dimensions total
  3. Relative Coordinates: Relative coordinates to the hip center point, 26 dimensions total
  4. Body Morphology: Body height, width and height-to-width ratio, 3 dimensions total
Fall Judgment Logic

The application uses multiple methods to determine if a fall has occurred:

# Feature extraction and classification
features = detector.extract_features(keypoints, confidences)
if scaler is available:
    features_scaled = scaler.transform(features)
else:
    features_scaled = features

# Get classifier prediction
probabilities = classifier.predict_proba(features_scaled)
is_falling = probabilities[0, 1] > FALL_MIN_CONFIDENCE  # Class 1 indicates fall

# Confirmation frame count (reduce false alarms)
if is_falling:
    fall_count += 1
    if fall_count >= FALL_CONFIRM_FRAMES:
        trigger_alarm()

Judgment Criteria:

  • Random forest classifier probability > 0.75 and fall detected for 3 consecutive frames
  • Or both body angle > 55° and body height-to-width ratio > 1.2 are satisfied

Alarm and Viewing

When a fall is detected, the application will:

  1. Activate Alarm Light: Send flash and alarm commands to the alarm light device via serial port
  2. Save Alarm Image: Save JPEG image with timestamp in the picture/ directory
  3. Upload to Server: Upload alarm image to specified server address
    • Upload address: http://SERVER_IP:8000/upload_fall (replace with your server address and upload interface)
    • Supports background asynchronous upload, does not block main program execution
  4. APK Viewing: Users can receive fall notifications in real-time via APK and view alarm images

Application Demo

Common Issues and Solutions

Model File Not Found

Symptom:

ERROR - Pose model not found: /path/to/model/yolov8n-pose.pt
ERROR - Classifier model not found: /path/to/model/fall_multi_person_model.pkl

Solution:

  • Ensure yolov8n-pose.pt, fall_multi_person_model.pkl, feature_scaler_multi.pkl are all in the model/ directory
  • Check if file paths are correct, test with absolute paths
  • First run can let the program auto-download YOLOv8 model (requires network connection)

Camera Not Recognized

Symptom:

Warning: No available cameras detected

Solution:

  • Check if camera is properly connected to USB port

  • Use command to check if camera is recognized:

    # Linux
ls -la /dev/video*

# Use v4l2-ctl to list cameras
v4l2-ctl --list-devices

  • Try other USB ports

  • If still not working, use a USB hub with power

  • Check if camera driver installation is needed

Camera Footage Stuttering or High Latency

Symptom:

Detected frame delay exceeds 1 second, or camera preview footage is not smooth

Cause Analysis:

  • Camera resolution too high causing processing delay
  • High CPU usage
  • Network upload blocking main thread

Solution:

  • Reduce camera resolution (change to 1280×720 instead of higher)
  • Adjust DETECT_INTERVAL parameter to increase detection interval:
    DETECT_INTERVAL = 0.25  # Increase from 0.15 to 0.25 seconds
  • Reduce YOLO_IMG_SIZE to speed up inference:
    YOLO_IMG_SIZE = 320  # Can reduce to 256
  • Disable server upload function for local testing

High False Alarm Rate (Normal Actions Detected as Falls)

Symptom:

Users bending over, sitting down or resting are incorrectly detected as falling

Solution:

  1. Adjust Classifier Confidence Threshold: Increasing threshold can reduce false alarms

    FALL_MIN_CONFIDENCE = 0.80  # Increase from 0.75 to 0.80

  2. Increase Confirmation Frame Count: Only judge as fall when detected in multiple consecutive frames

    FALL_CONFIRM_FRAMES = 5  # Increase from 3 to 5

  3. Optimize Angle and Ratio Thresholds:

    FALL_BODY_ANGLE_THRESHOLD = 65  # Increase angle threshold
FALL_HEIGHT_RATIO_THRESHOLD = 1.4  # Increase height-to-width ratio threshold

  4. Retrain Classifier: Use more diverse training data

    • Add negative samples of sitting, bending over, etc.
    • Ensure diversity of fall samples (different angles, speeds, people)
    • Increase training dataset size

High Miss Rate (Actual Falls Not Detected)

Symptom:

No alarm triggered when actual fall occurs

Solution:

  1. Lower Classifier Confidence Threshold:

    FALL_MIN_CONFIDENCE = 0.65  # Lower from 0.75 to 0.65

  2. Decrease Confirmation Frame Count:

    FALL_CONFIRM_FRAMES = 2  # Lower from 3 to 2

  3. Check Keypoint Detection Quality:

    # Increase keypoint requirements or lower confidence threshold
MIN_CONFIDENCE = 0.3  # Lower from 0.4
MIN_KEYPOINTS = 8     # Lower from 10

  4. Optimize View Angle: Ensure camera can see the entire body

    • Camera should be 1-3 meters from user
    • Camera installation height should be 1.5-2 meters
    • Avoid side or near-vertical viewing angles

  5. Improve Lighting Conditions:

    • Ensure adequate lighting, avoid shadows and backlighting
    • Use uniform ambient light instead of localized strong light

Alarm Light Not Activating

Symptom:

Fall detected but alarm light doesn't turn on

Solution:

  • Check if serial port connection is correct
  • Verify if alarm light device is working properly
  • Check serial port configuration in light_control.py:
    port = '/dev/ttyUSB0'        # Modify according to actual device
baudrate = 9600              # Modify according to device specifications
  • Check serial port permissions:
    sudo chmod 666 /dev/ttyUSB0
  • Debug according to purchased alarm light documentation, ensure sent command format is correct

Image Upload Failed

Symptom:

ERROR - Upload failed: fall_20240326_143022.jpg

Cause Analysis:

  • Unstable network connection
  • Wrong server address or server unavailable
  • Request timeout

Solution:

  • Check network connection: ping SERVER_IP
  • Verify if server is running: curl http://SERVER_IP:8000/upload_fall
  • Check firewall settings to allow outbound connections
  • Modify server address:
    SERVER_IP = "your.server.ip"

Performance Optimization Issues

High CPU Usage

Symptom:

Application CPU usage > 80% during runtime, system response slow

Solution:

  • Lower detection frequency (increase DETECT_INTERVAL)
  • Reduce video resolution (change to 640×480 or lower)
  • Disable real-time log display or reduce log update frequency
  • Use GPU acceleration (if hardware supports)

Memory Leak Causing Continuous Memory Increase

Symptom:

Application memory usage grows from 200MB to 1GB after running for several hours

Solution:

  • Check if unreleased objects are created in loops
  • Periodically clear log buffer:
    if len(LogManager._logs) > 100:
    LogManager.clear_logs()
  • Ensure threads are properly closed
  • Use memory analysis tool to detect leaks: python3 -m memory_profiler
