Mechanical Dimensions

It mainly introduces the mechanical dimensions of Quectel Pi H1 single-board computer. All dimensions are measured in millimeter mm, and the dimensional tolerances are ±0.2 mm unless otherwise specified.

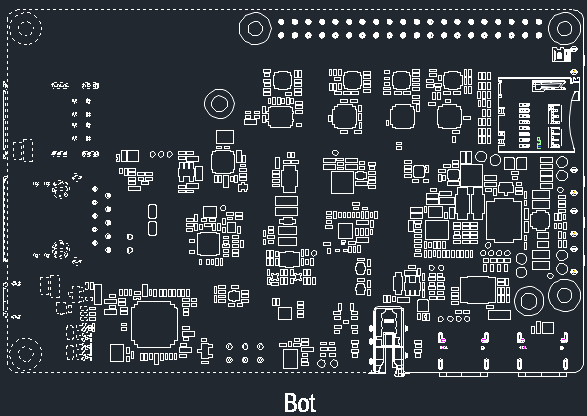

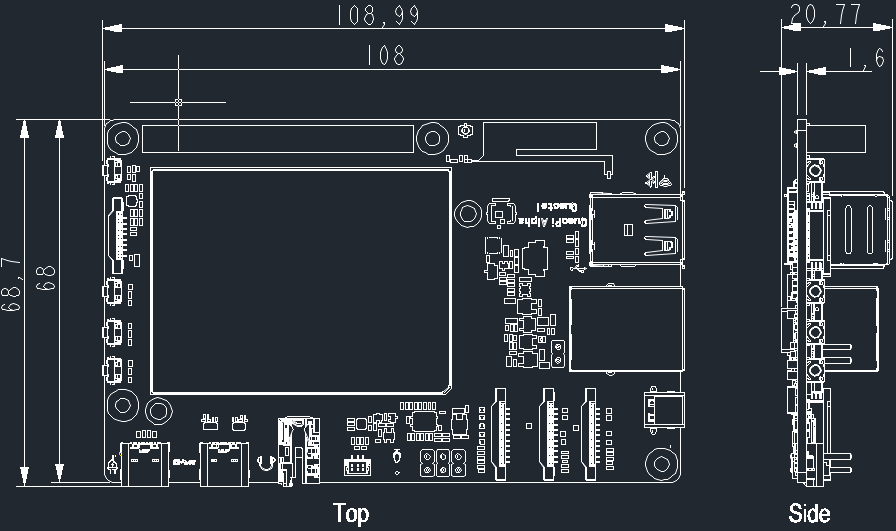

Mechanical Dimension Diagram
