FCM360W EVB Introduction
Supported Modules
Supported module model
Feature List
Basic Overview
The QuecPython_FCM360W_EVB development board is a compact and portable "pocket-sized" board designed specifically for QuecPython. It features a Type-C interface, allowing developers to easily use the board with just a USB Type-C data cable.
Feature Description

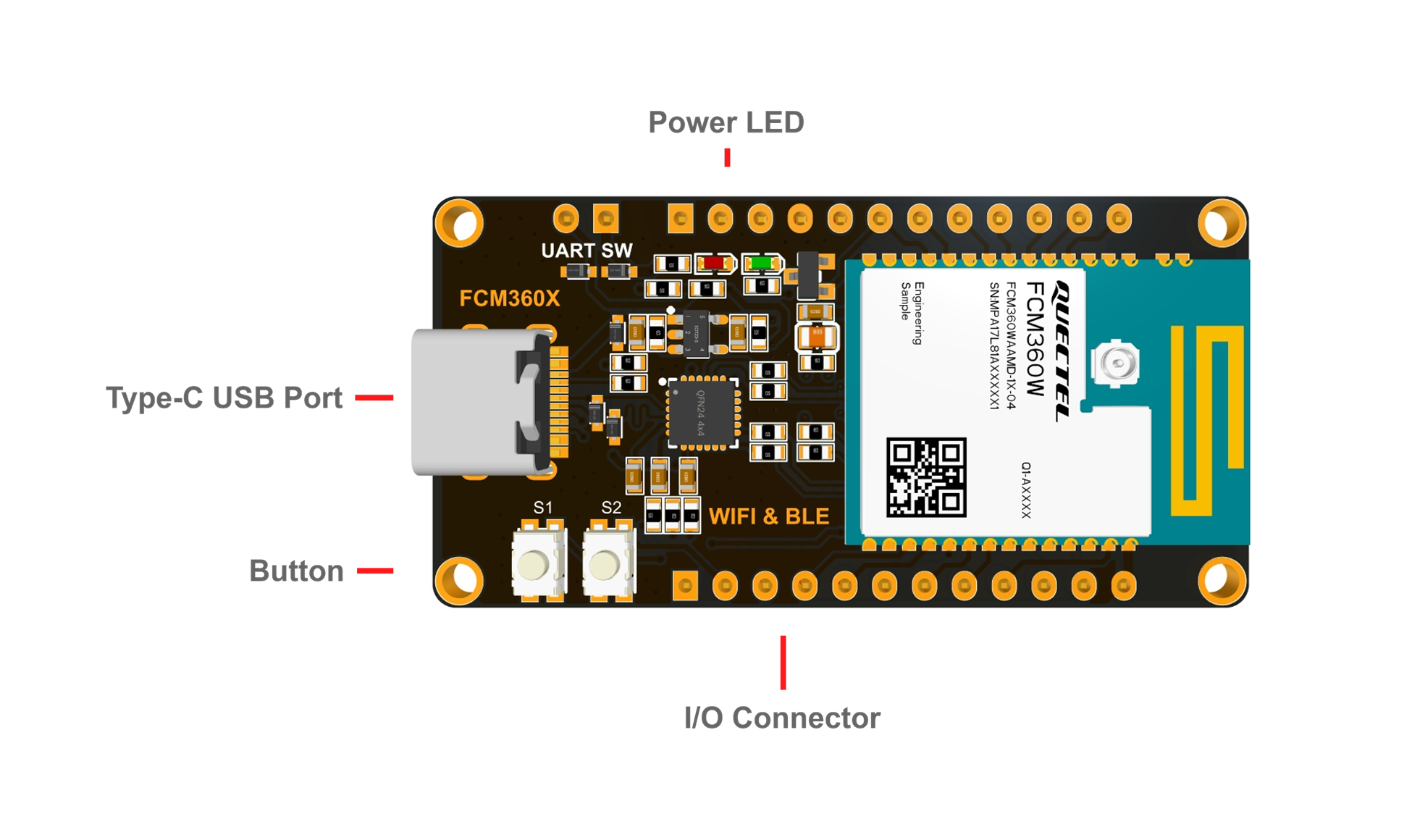

The main components and interface layout of the EVB are shown in the figure below.
Document download
EVB Resources
EVB Interface
J1 Pin Assignment
Pin Header | Pin No. | Name | Feature |
---|---|---|---|
J1 | - | VCC_3V3 | 3.3 V |
J1 | 26 | MAIN_RXD | UART0 |
J1 | 27 | MAIN_TXD | UART0 |
J1 | - | GND | Ground |
J1 | 5 | CEN | Module enable control |
J1 | 13 | IO22 | GPIO22 |
J1 | 12 | IO21 | GPIO21 |
J1 | 10 | IO16 | GPIO16 |
J1 | 9 | IO4 | GPIO4 |
J1 | 8 | IO14 | GPIO14 |
J1 | 7 | IO15 | GPIO15 |
J1 | 6 | IO20 | GPIO20 |
J2 Pin Assignment
Pin Header | Pin No. | Name | Feature |
---|---|---|---|
J2 | 16 | IO25 | GPIO25 |
J2 | 15 | IO24 | GPIO24 |
J2 | 14 | IO23 | GPIO23 |
J2 | 19 | IO17 | GPIO17 |
J2 | 20 | IO13 | GPIO13 |
J2 | 21 | IO1 | GPIO1 |
J2 | 22 | IO0 | GPIO0 |
J2 | 23 | IO3 | GPIO3 |
J2 | 29 | IO2 | GPIO2 |
J2 | 11 | RESET | Module reset control |
J2 | 17 | BOOT | Module boot control |
J2 | - | GND | Ground |

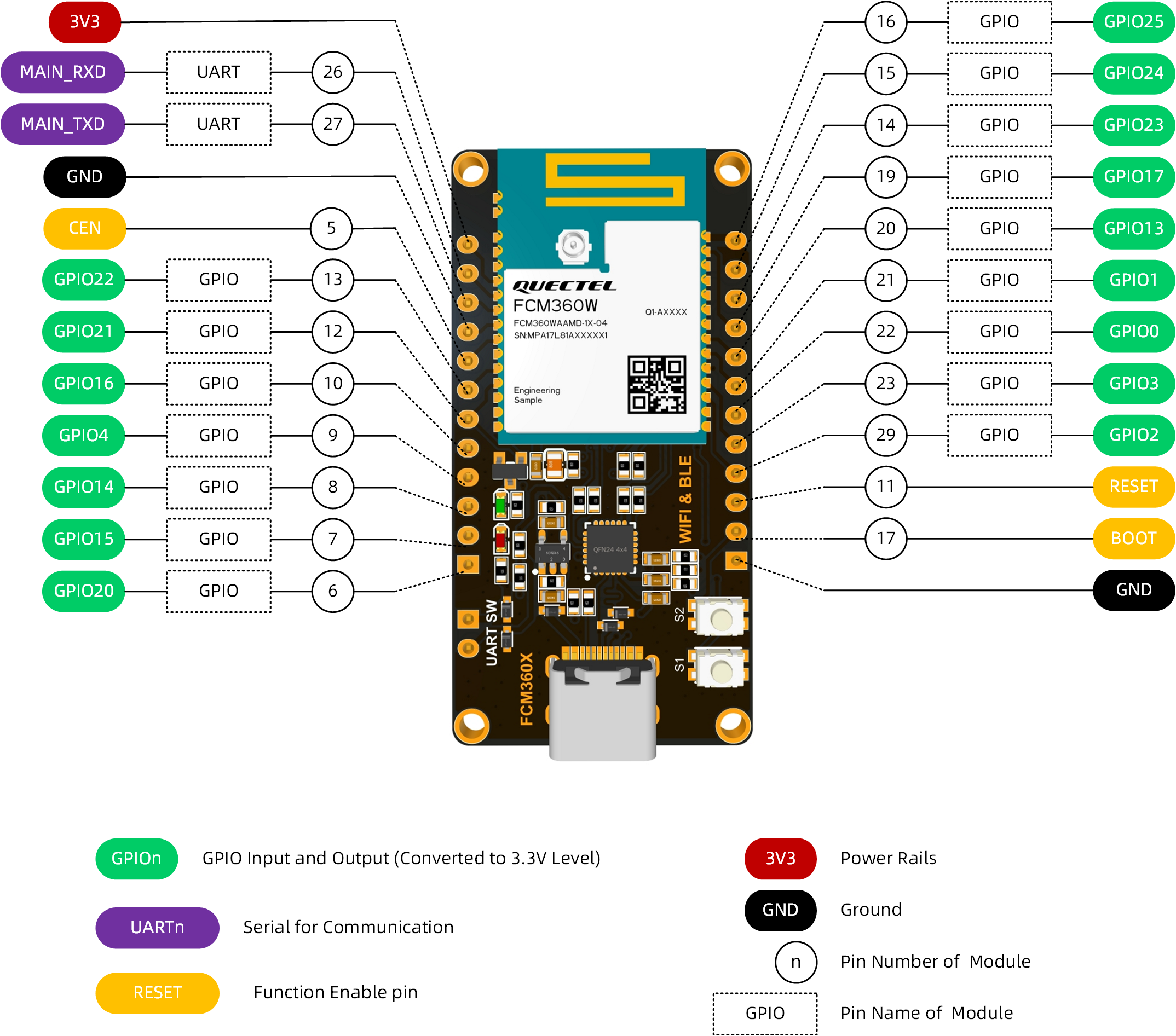

The following figure shows the pin assignment.
Tips
For more information about the EVB, please visit QuecPython Download
EVB Configuration
The pins of peripherals are shown in the table below.
No. | Name | Model | Supported | Interface Type | Pin |
---|---|---|---|---|---|
1 | USB to UART | CH340N | Yes | USB | 26 and 27 |
2 | Key | - | Yes | GPIO | 15 and 16 |
Quick Start Guide
Hardware Preparation
Step 1: Required Items
- Development board
- USB-C cable (A-to-C)
- Windows 10 PC
- Nano-SIM card
- 4G antenna
Step 2: Antenna & SIM Installation
- Attach the provided antenna to the MAIN antenna port.
- Insert the SIM card into the Nano-SIM slot.
Step 3: Connect the Board
- Power the board via USB-C.
Step 4: Power On
- Press and hold PWK until the power indicator light on the mainboard (labeled as POW) lights up.
- If you short-circuited PWK_ON, there's no need to press PWK; the board will power on automatically.
If the PWR indicator is constantly on, the EVB is successfully turned on.
Driver Installation
- Download the QuecPython USB Driver from QuecPython Official Drivers.
- Extract and run
setup.exe
orsetup.bat
. - Verify installation in Device Manager (look for "Quectel USB" ports). Ignore unrelated devices like "Mobile ECM Network Adapter."
Tool Installation
- QPYcom: Download from QuecPython Tools. Extract and use directly.
- VSCode Plugin: Search for "QuecPython" in the Visual Studio Code marketplace.
Firmware Burning
Firmware Download: Get the latest QuecPython firmware from QuecPython Firmware Page.
Burning Steps:
Open QPYcom, select the USB REPL port, and create a new project.
Choose the
.bin
firmware fileSet mode to "Download FW" and click Download.

REPL Debugging
- Connect via QPYcom and open the REPL interface.
- Test with
print("Hello World!")
.
First Script Development
Writing a Script
Create helloworld.py
:
print("Hello World!")
File Transfer
- Method 1: Drag-and-drop files via QPYcom’s GUI.
- Method 2: Use the "Download Script" feature in QPYcom.
Running Scripts
Execute via REPL:
import example
example.exec("/usr/helloworld.py")
Stopping Program Execution
How to stop a running program. The following methods are provided according to the type of the running script file:
Is the program name main.py? | Does the program contain a dead loop? | Does the program use multiple threads? | Stopping Steps |
---|---|---|---|
✓ | ✓ | ✓ | (1) Press Ctrl + A to enter RAW mode (2) Press Ctrl + D to restart the QuePython virtual machine (3) Press Ctrl + B to return to the normal interactive mode (4) If the above methods fail, re-flash the firmware |
✓ | ✓ | ✗ | (1) Press Ctrl + C to interrupt the program execution (2) If the above method fails, re-flash the firmware |
✓ | ✗ | ✓ | (1) Press Ctrl + A to enter RAW mode (2) Press Ctrl + D to restart the QuePython virtual machine (3) Press Ctrl + B to return to the normal interactive mode (4) If the above methods fail, wait for the program to finish running |
✓ | ✗ | ✗ | (1) Press Ctrl + C to interrupt the program execution (2) If the above method fails, re-flash the firmware |
✗ | ✓ | ✓ | (1) Press Ctrl + D to restart the QuePython virtual machine (2) If the above method fails, directly restart the module |
✗ | ✓ | ✗ | (1) Press Ctrl + D to restart the QuePython virtual machine (2) If the above method fails, directly restart the module |
✗ | ✗ | ✓ | (1) Press Ctrl + C to interrupt the program execution (2) If the above method fails, re-flash the firmware or directly restart the module |
✗ | ✗ | ✗ | (1) Press Ctrl + C to interrupt the program execution (2) If the above method fails, re-flash the firmware or directly restart the module |
