QuecPython BG&EG Core EVB Introduction

Quick Start

Supported Module List

• BG95-M1
• BG95-M3
• BG95-M8
• EG915U-LA
• EG915U-EU
• EG912U-GL

Feature List

Overview

The QuecPython BG&EG series core board (PH-7 (C4-P02)) is a core development board specifically designed for QuecPython with minimal functionality. The core board is designed with a 2.54mm pin arrangement, providing 38 PIN pins, including functional pins and enable control pins. Mainly providing support and convenience for customer development, debugging, and mass production equipment. The core board of the series is applicable to the entire BG95 series, EG915UEUAB, EG915ULAAB, EG912UGLAA and other EG series, including but not limited to the above module models.

Core EVB View

The main components and interface layout of the development board are shown in the following figure.

• Charging and USB: When inserting the Type-C interface to connect to USB, the charging function is enabled by default and cannot be turned off. If the charging function is not used, there is no need to pay attention.
• GNSS: The GNSS function depends on the module model. Taking BG95 as an example, the core board defaults to using active antennas and has already enabled power supply to the active antennas by default.
• SD & SIM Card Slot.
• 38 Pin.
• Antenna Interface。

Documents Download

• QuecPython-PH-7C4-P02_Core_Board_Specification_and_User_Guide_V1.0.0
• QuecPython-PH-7C4-P02_Core_Board_SCH
• QuecPython-PH-7C4-P02_Core_Board_Silkscreen

EVB Resources

The main pin layout of the development board is shown in the following figure.

Quick Start Guide

Hardware Preparation

• Step 1: Required Items

  • Development board
  • USB-C cable (A-to-C)
  • Windows 10 PC
  • Nano-SIM card
  • 4G antenna

• Step 2: Antenna & SIM Installation

  • Attach the provided antenna to the MAIN antenna port.
  • Insert the SIM card into the Nano-SIM slot.

• Step 3: Connect the Board

  • Power the board via USB-C.

• Step 4: Power On

  • Press and hold PWK until the power indicator light on the mainboard (labeled as POW) lights up.
  • If you short-circuited PWK_ON, there's no need to press PWK; the board will power on automatically.

  If the PWR indicator is constantly on, the EVB is successfully turned on.

Driver Installation

1. Download the QuecPython USB Driver from QuecPython Official Drivers.
2. Extract and run setup.exe or setup.bat.
3. Verify installation in Device Manager (look for "Quectel USB" ports). Ignore unrelated devices like "Mobile ECM Network Adapter."

Tool Installation

1. QPYcom: Download from QuecPython Tools. Extract and use directly.
2. VSCode Plugin: Search for "QuecPython" in the Visual Studio Code marketplace.

Firmware Burning

1. Firmware Download: Get the latest QuecPython firmware from QuecPython Firmware Page.

2. Burning Steps:

   • Open QPYcom, select the USB REPL port, and create a new project.

   • Choose the .bin firmware file

   • Set mode to "Download FW" and click Download.

REPL Debugging

1. Connect via QPYcom and open the REPL interface.

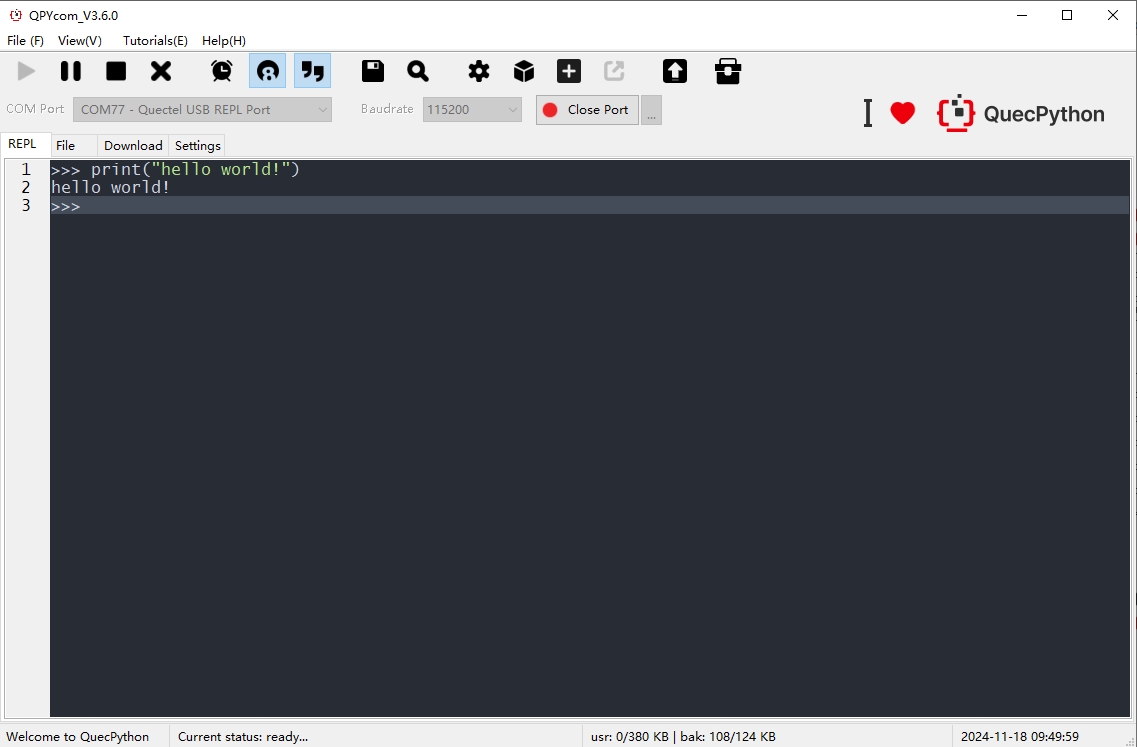

2. Test with print("Hello World!").

First Script Development

Writing a Script

Create helloworld.py:

print("Hello World!")

File Transfer

• Method 1: Drag-and-drop files via QPYcom’s GUI.

• Method 2: Use the "Download Script" feature in QPYcom.

Running Scripts

Execute via REPL:

import example
example.exec("/usr/helloworld.py")

Stopping Program Execution

How to stop a running program. The following methods are provided according to the type of the running script file:
