QuecPi Alpha

Quectel has actively expanded its single board computer (SBC) product line in recent years to provide high-performance, low-power embedded solutions for the Internet of Things and edge computing. Its single board computer products are equipped with ARM architecture processors (such as Qualcomm QCS6490), support Linux and Android operating systems, have rich interfaces (such as GPIO, USB, HDMI, PCIe, etc.), and can be flexibly applied to industrial automation, intelligent retail, smart medicine, edge computing and other scenarios.

Overview
Features
Resources

Overview

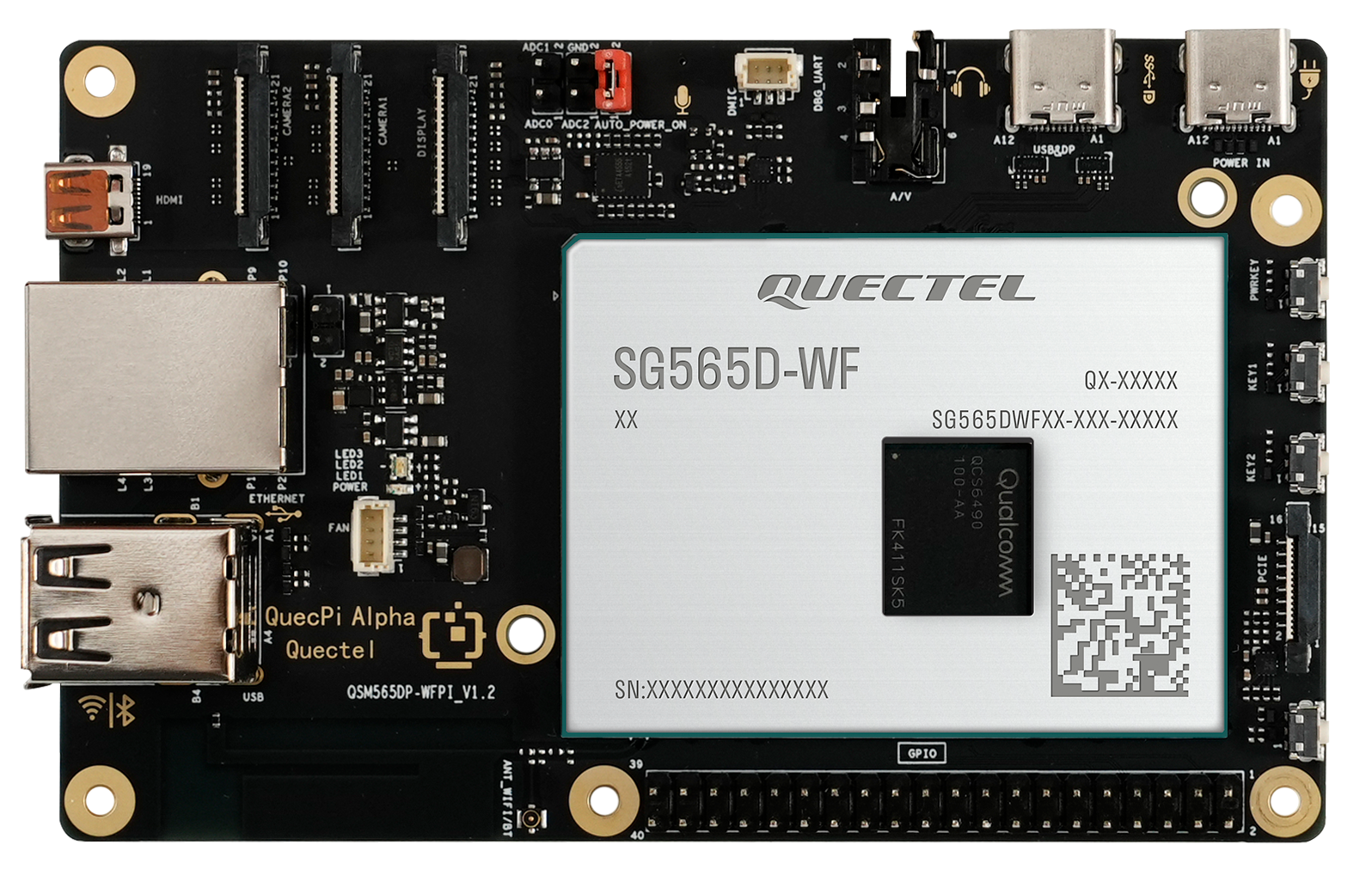

QuecPi Alpha

Quectel QuecPi Alpha Intelligent Ecological Development Board is a comprehensive development platform for the Internet of Things (IoT) and intelligent hardware development launched by Quectel. It integrates various communication modules, sensors, and peripheral interfaces, aiming to help developers quickly build prototypes and achieve commercial applications.

Features

Product Overview

Integrated Qualcomm QCS6490 8-core processor with up to 12.5 TOPS computing power
Integrated AdrenoTM 642L/643 GPU
Multiple storage configurations available, default 8GB LPDDR4x+128GB UFS, expandable to 8GB LPDDR4x+256GB UFS
Support Yocto Linux and Ubuntu systems
Lifecycle support ends in 2036

Interface Characteristics

Video encoding: 4K (H.264/H.265) @ 30fps
Video decoding: 4K (H.264/H.265/VP9) @ 60fps
Supports 2.4G and 5G dual band WiFi 5
Supports Bluetooth 5.0
Supports Gigabit Ethernet cards
Supports multiple display interfaces such as HDMI, Type-C DP, MIPI-DSI, etc
Supports 2 MIPI-CSI camera interfaces
Supports 3.5mm headphone jack and HDMI audio output
Support 1-channel digital microphone audio input
Supports 1 PCIe and 4 USB expansion interfaces
Support 40Pin extension interface compatible with Raspberry Pi
Support SD card storage expansion

Target Market

edge computing
Industrial Manufacturing and Robotics
Media and entertainment
IoT gateway
Server setup
Big Models and Machine Learning
Education and Research

Ecological Construction

Open source software and hardware
Compatible with commonly used Raspberry Pi peripherals
