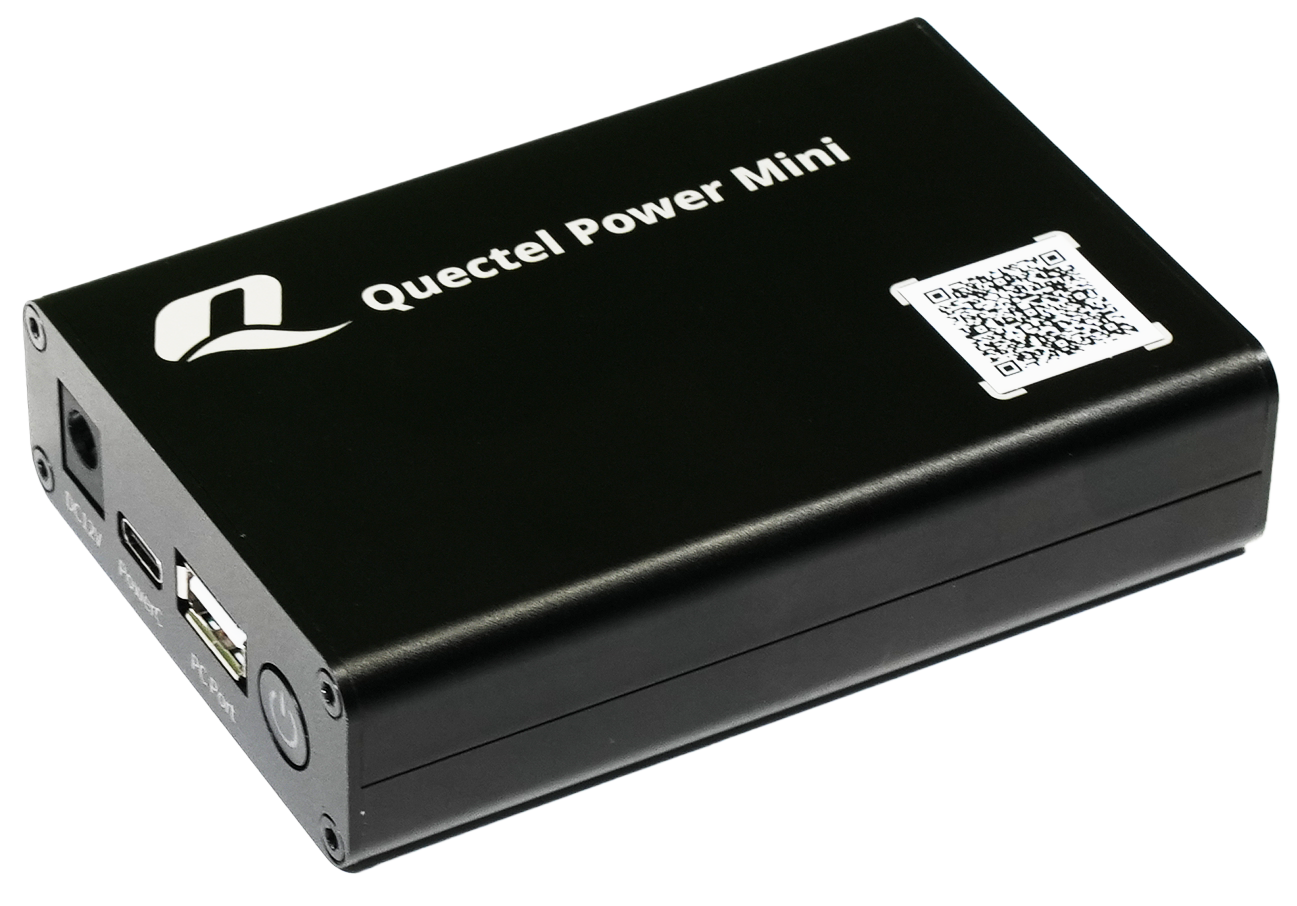

Power Mini Portable DC Power Analyzer

Quectel Power Mini is a high-precision DC power analyzer specifically designed for IoT module communication and embedded software development scenarios. Integrating portable DC programmable power supply, high-precision current measurement, real-time dynamic current waveform analysis, and cost-effectiveness, Quectel Power Mini helps developers efficiently conduct precise power consumption testing and dynamic measurement analysis during product R&D phases.

Overview
Features
Resources

Overview

Power Mini Portable DC Power Analyzer

Quectel Power Mini is a highly integrated, portable DC power consumption analyzer that combines adjustable DC power supply, high -precision current sampling, and dynamic current waveform analysis . It supports wide -range current measurement from nA to A levels, and features multiple measurement modes and auto -ranging capability, enabling it to accurately capture current variation characteristics of a system in different operating states such as standby, wake -up, and peak transmission .The compact design and multi -interface power supply options make it suitable for mobile testing scenarios outside the laboratory, significantly improving debugging flexibility . With the PC software tool and multi -language SDK, users can perform real -time data acquisition, waveform analysis, and power consumption modeling . It is widely used for power consumption optimization and performance evaluation of wireless communication modules, embedded systems, wearable devices, and IoT terminals .

Features

Key features

Adjustable DC power output: 0.6 V to 6.5 V (50 mV step)
Wide current measurement range: nA to 5 A
Three measurement modes: precision mode / auto mode / normal mode
nA-level current resolution
5 ksps maximum sampling rate
Output overload protection
Multi-language SDK support (C#, Python, VB, C++, C, LabVIEW, etc.)
PC tool support
Compact and lightweight

Application scenarios

Smart wearable devices | Low -power analysis of wearable electronic products
Mobile phones / computers | Current consumption analysis in different operating states
Power consumption evaluation | System -level power consumption analysis and optimization
Device selection evaluation | Power consumption performance comparison among candidate devices
Portable DC power supply | Adjustable voltage source without a benchtop power supply
Battery life evaluation | Battery life evaluation based on actual current profiles
Module / evaluation board | testing Current analysis of wireless modules and development boards

Resources

Quectel Power Mini Portable DC Power Analyzer User Manual

Quectel Power Mini Portable DC Power Analyzer Specification

Resource Download
